Product Description

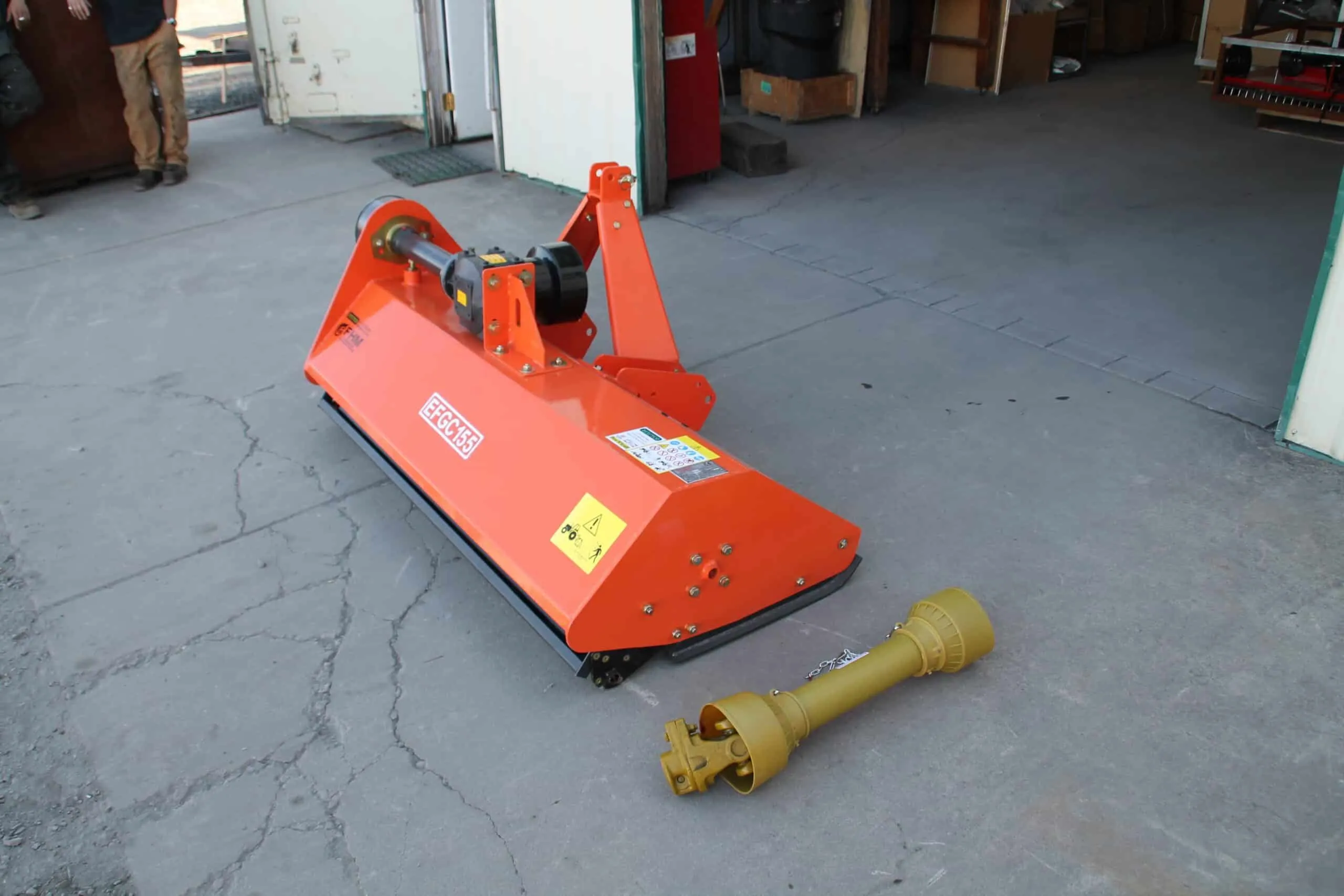

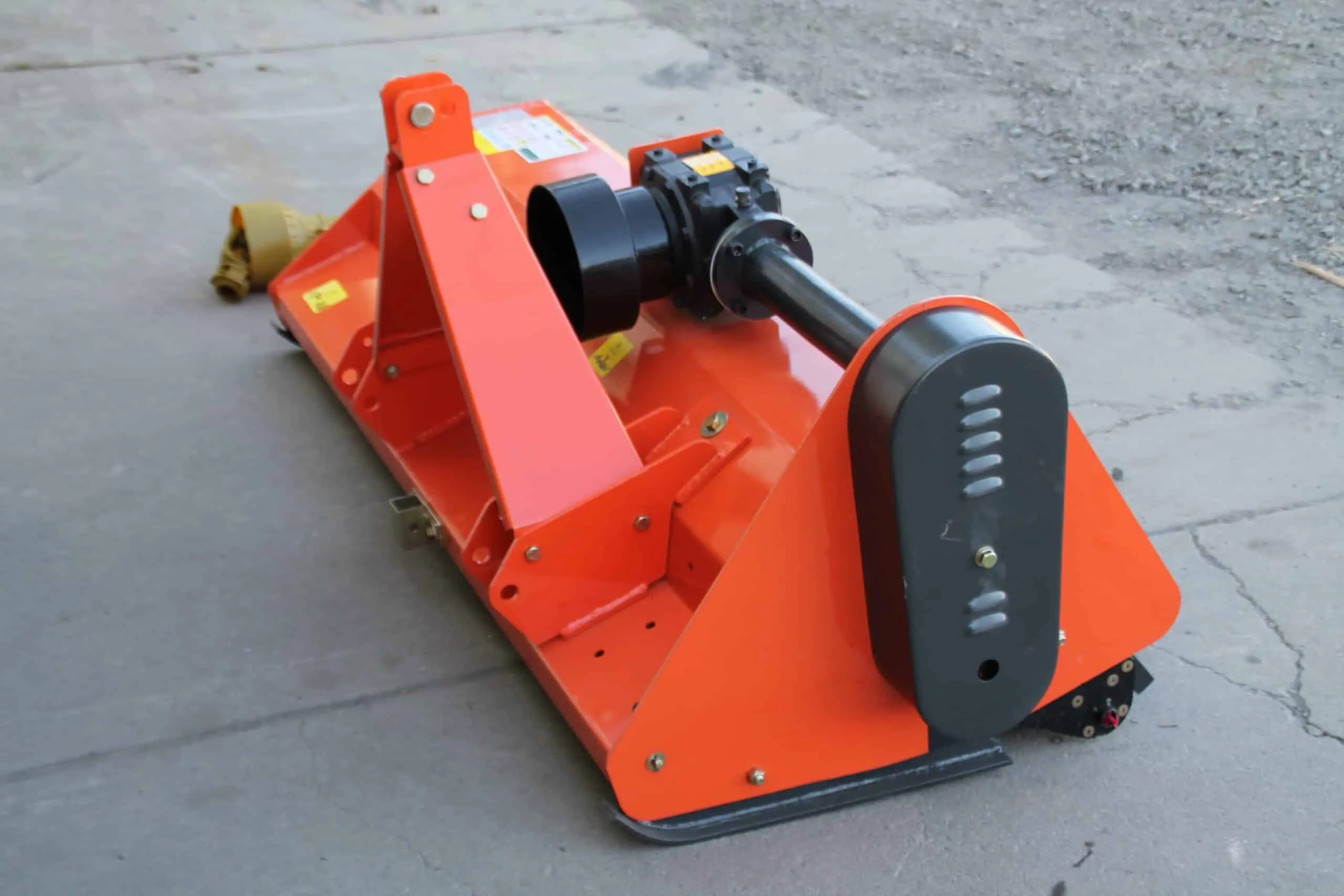

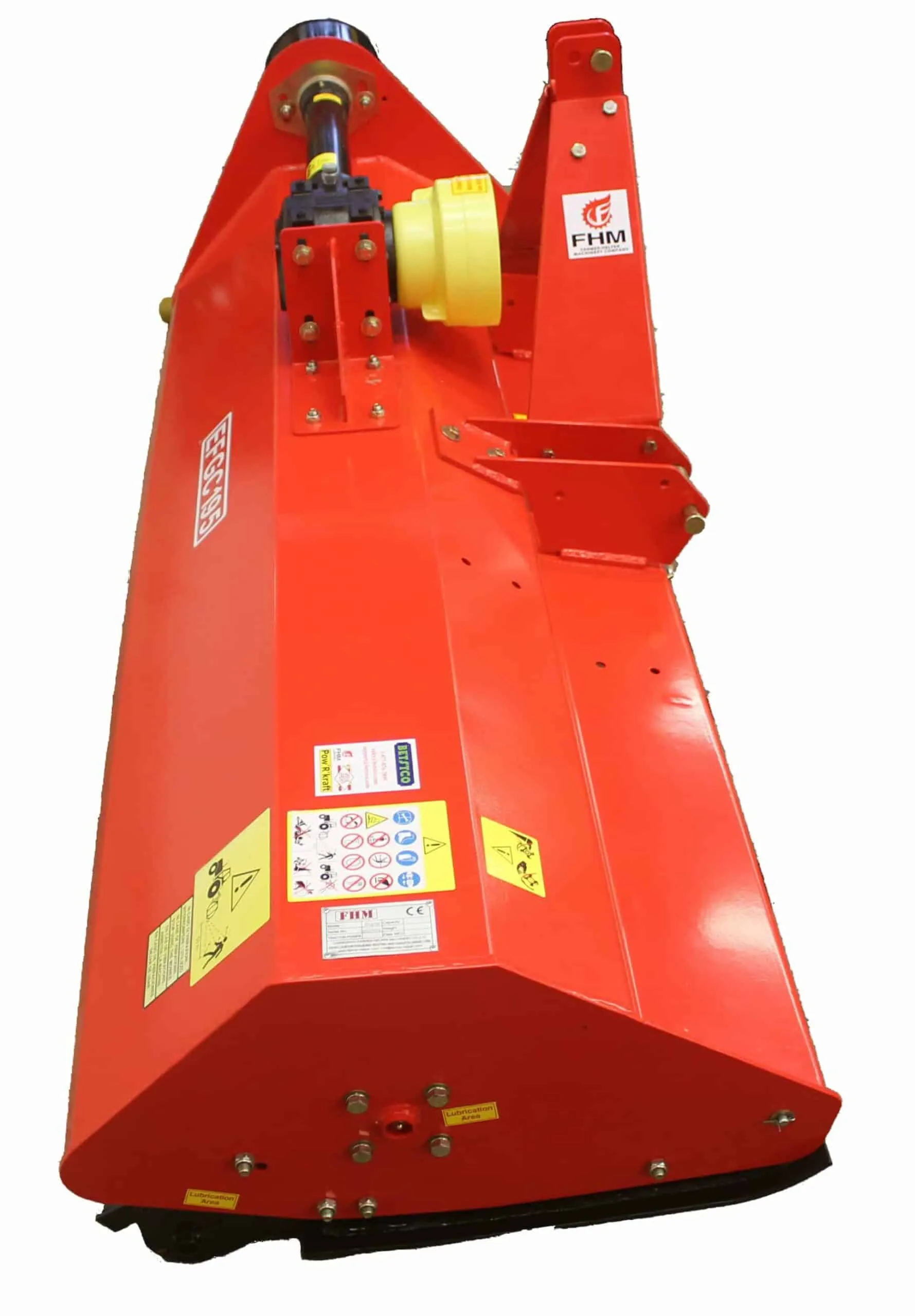

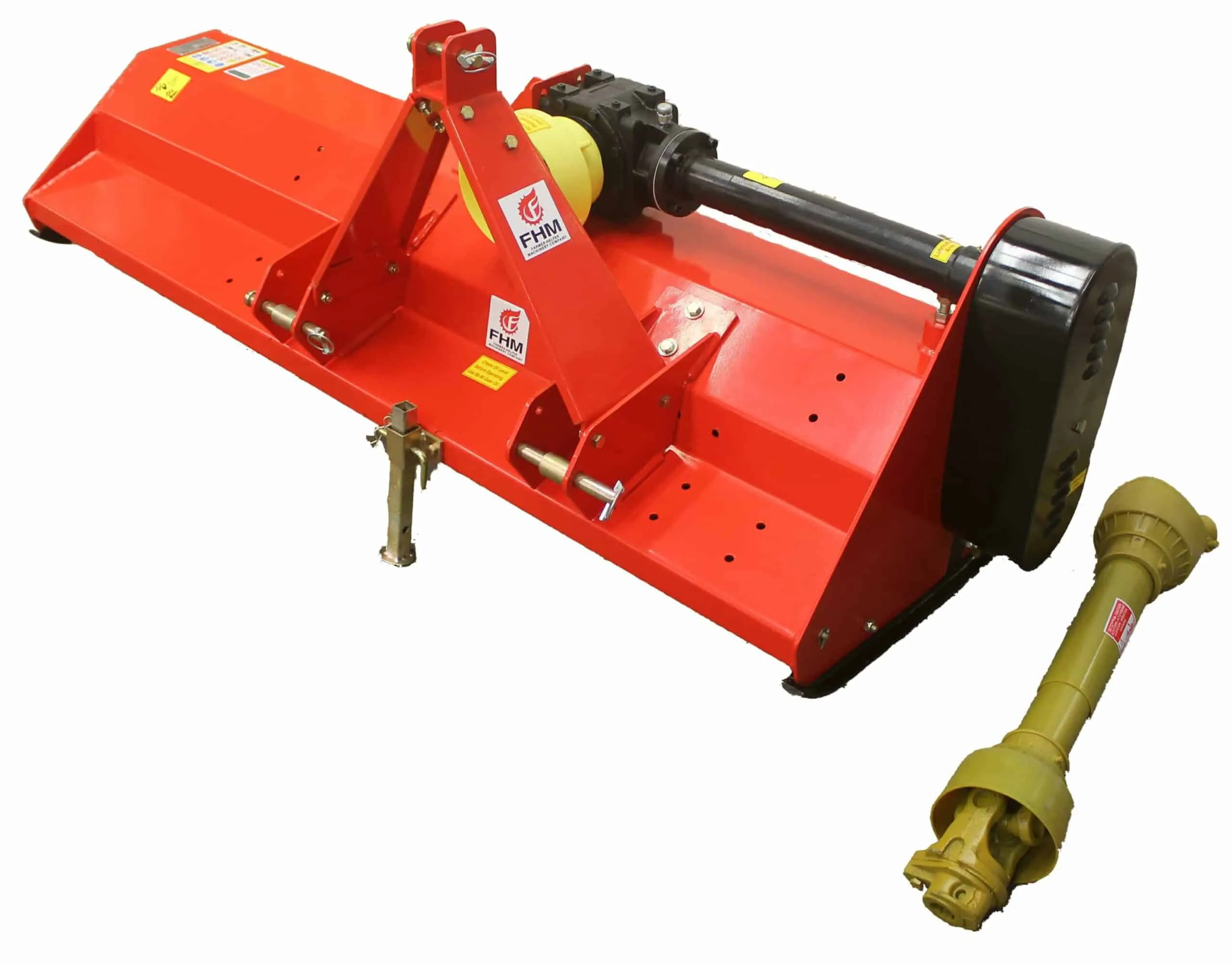

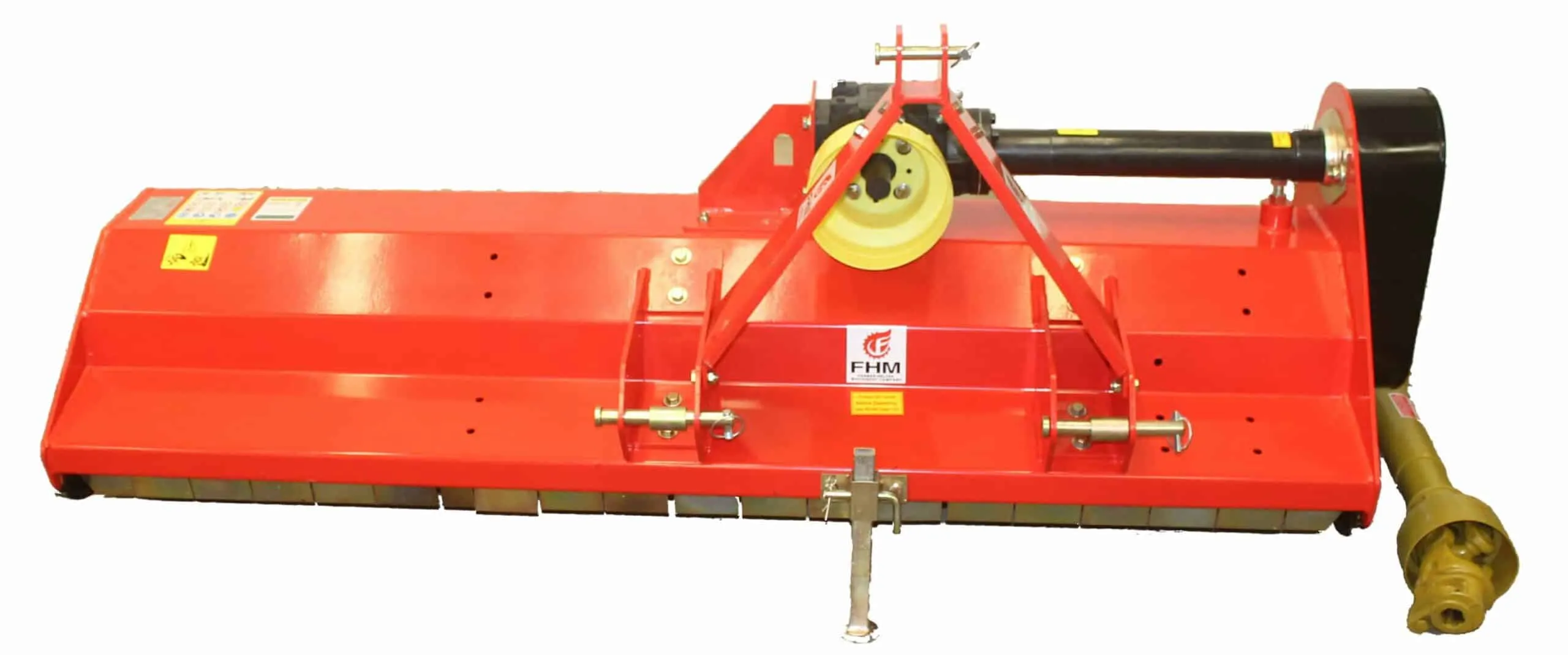

Farmer Helper EFGC Series (Heavy Duty) Flail Mower | 41" to 77" Working Width | 20-65HP For Tractor
Included Options:
- Hydraulic Offset Kit: Optional add-on for greater mowing flexibility.

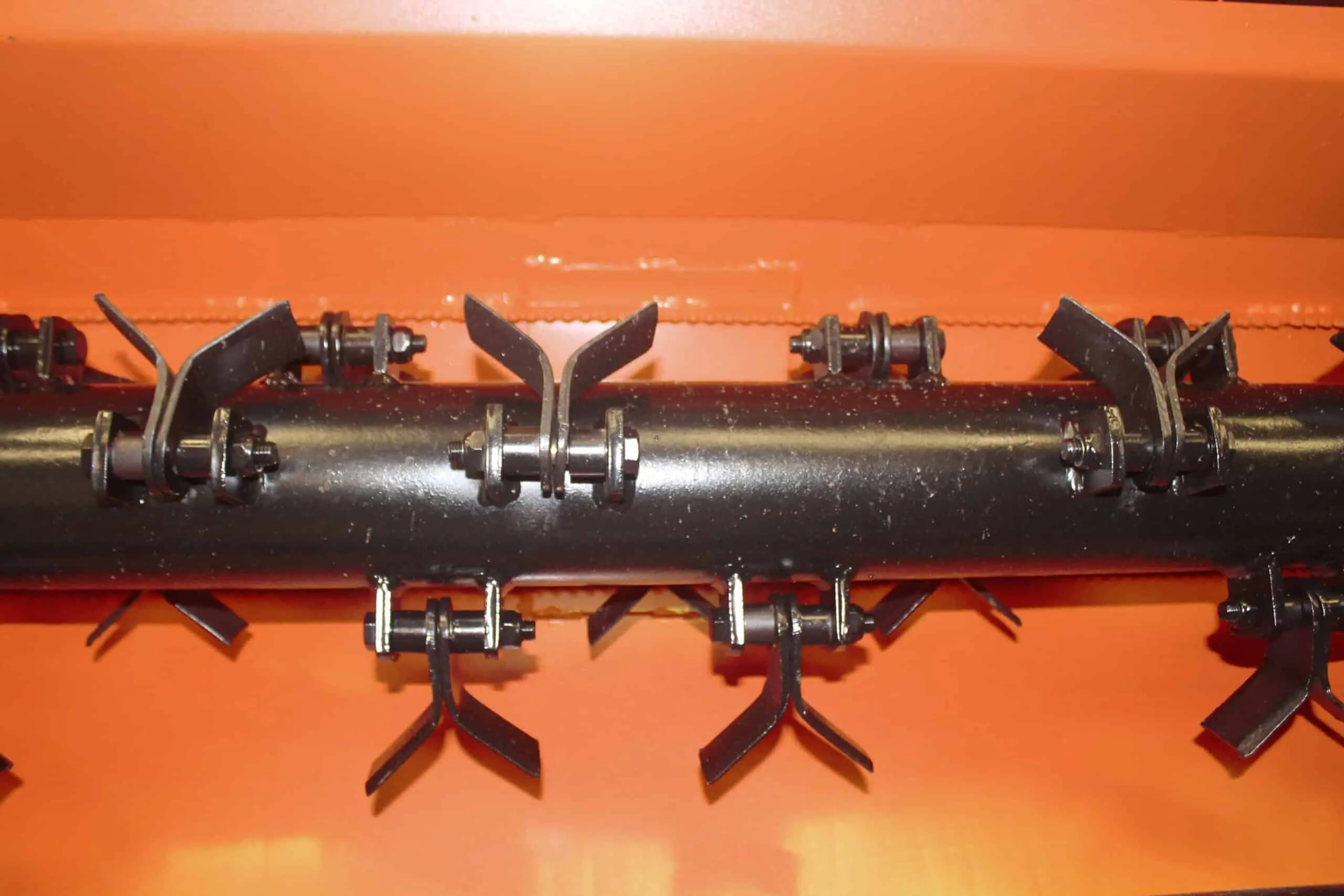

- Replacement Blades: Easy-to-install hammer or Y blades for extended use.
DESCRIPTION
Elevate your groundskeeping expertise with the Farmer-Helper EFGC Series (Heavy Duty) Flail Mower – the ultimate powerhouse for all your lawn care demands! Perfect for maintaining an orchard, nursery, vineyard, greenhouse, or garden, this high-performance mower features rapid blade tip speed and interchangeable blades to conquer even the most challenging tasks with ease.
Designed for those who settle for nothing less than the best, the EFGC Series is engineered to tackle dense areas and cut through wooded material up to 3 inches in diameter. This heavy-duty mower is specifically tailored for acreages larger than 15 acres, delivering unbeatable performance and impeccable results every time.
Say farewell to untidy cuts and scattered debris during operation. The state-of-the-art flail mower technology guarantees precision cutting, producing finely chopped grass clippings and minimizing the risk of damage. Ideal for maintaining parks or mowing highways, this mower is the go-to choice for professionals and dedicated groundskeepers alike. Don’t wait – invest in the Farmer-Helper EFGC Series Flail Mower today and experience the ultimate transformation in your lawn care capabilities!
Key Features

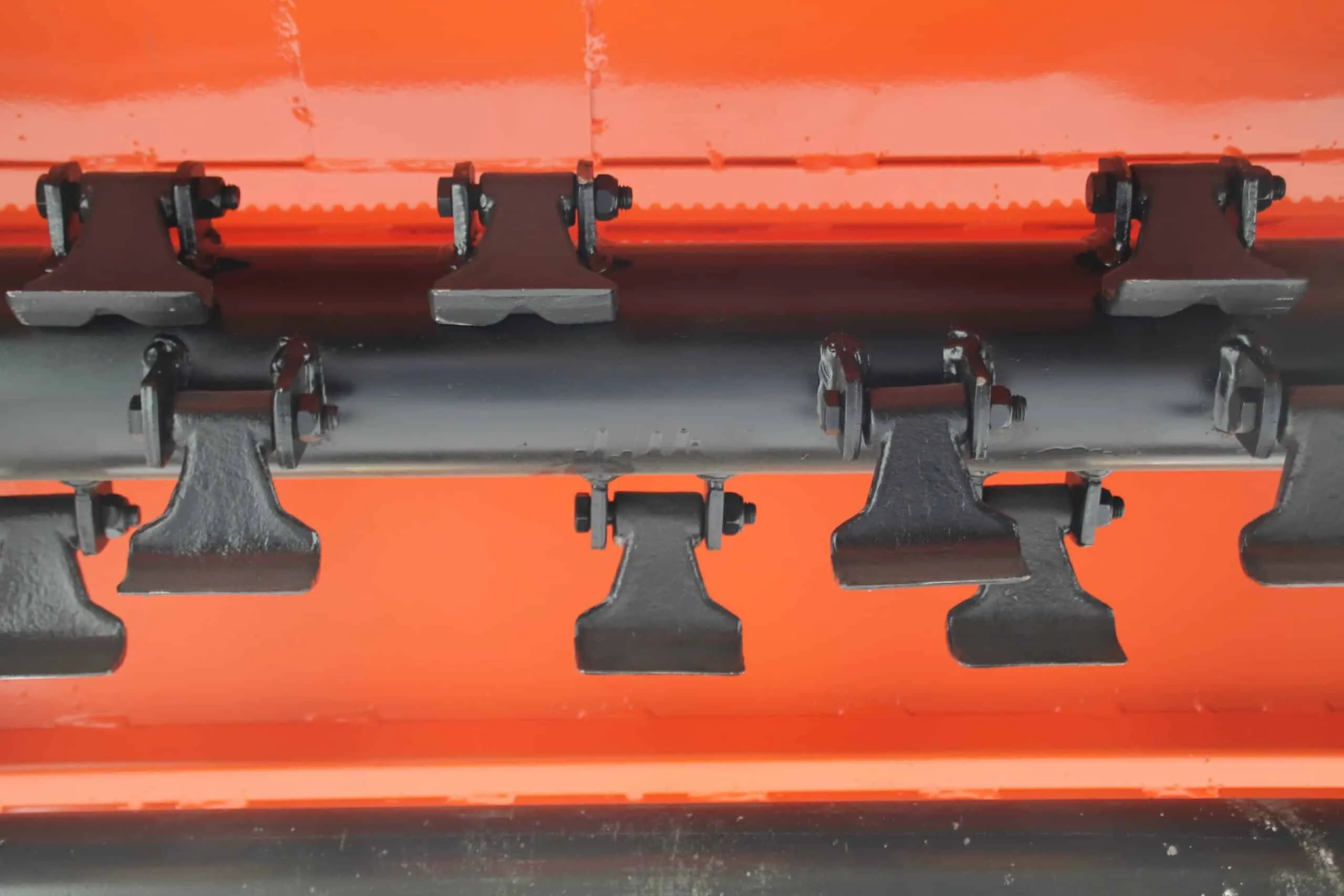

- Hammer Blades with Precise Blade Overlap: Ensures even and effective cutting.
- Multiple Drive Belts: Assures power to the blades for consistent mowing.
- Under Deck Clump Busters: Prevents clogging for uninterrupted operation.
- Standard 3-Pt Category I Hitch Mount: Easy to attach and detach.
- Shear Bolt PTO Shaft: For standard 1-3/8” 6-Spline PTO.
- Adjustable Finished Cutting Height: Both rear roller and skids can be adjusted.
- Balanced Rotor and Shaft: Reduces vibration and ensures smooth operation.
- Powder Coat Paint Finish: Provides durability and resistance to rust.

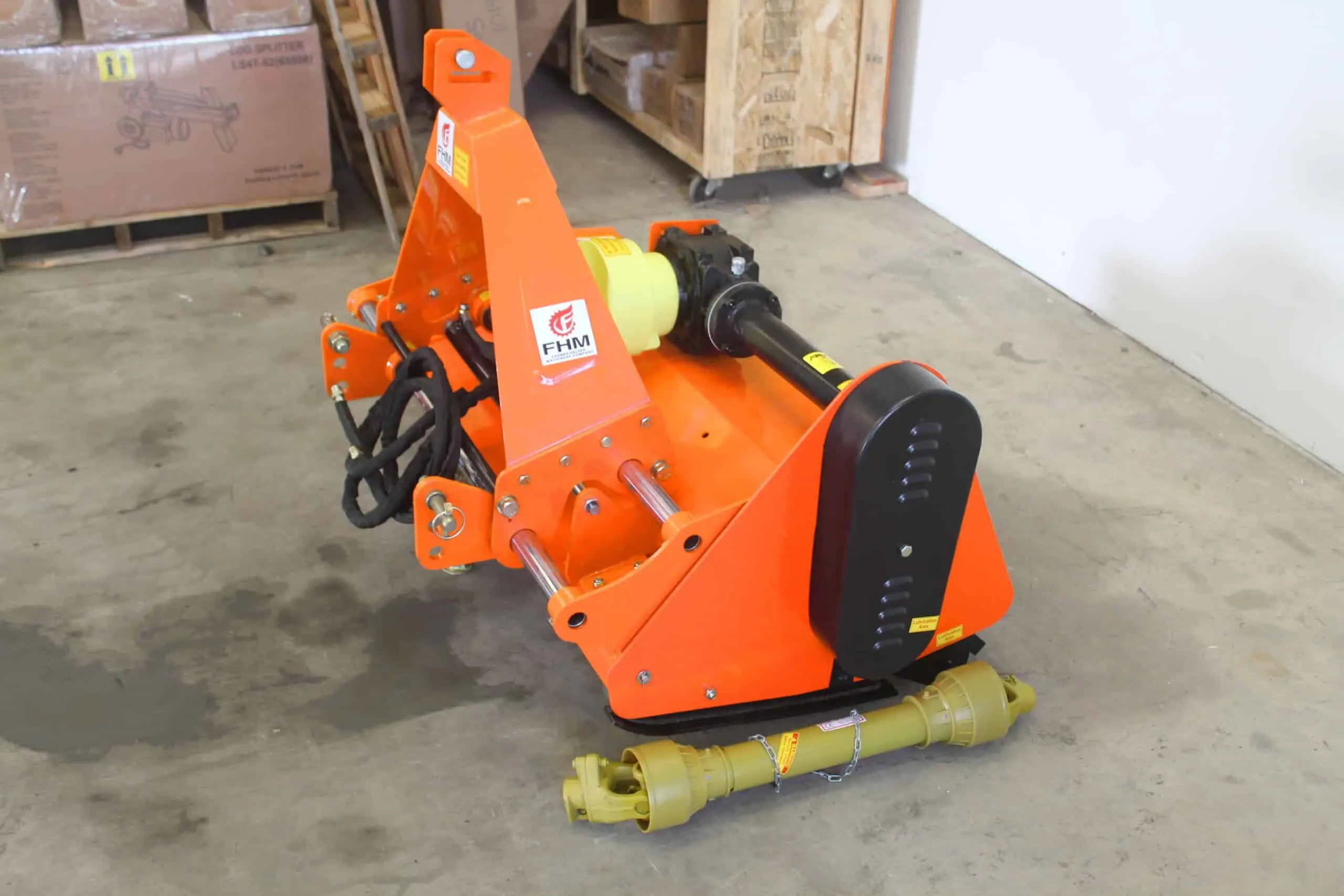

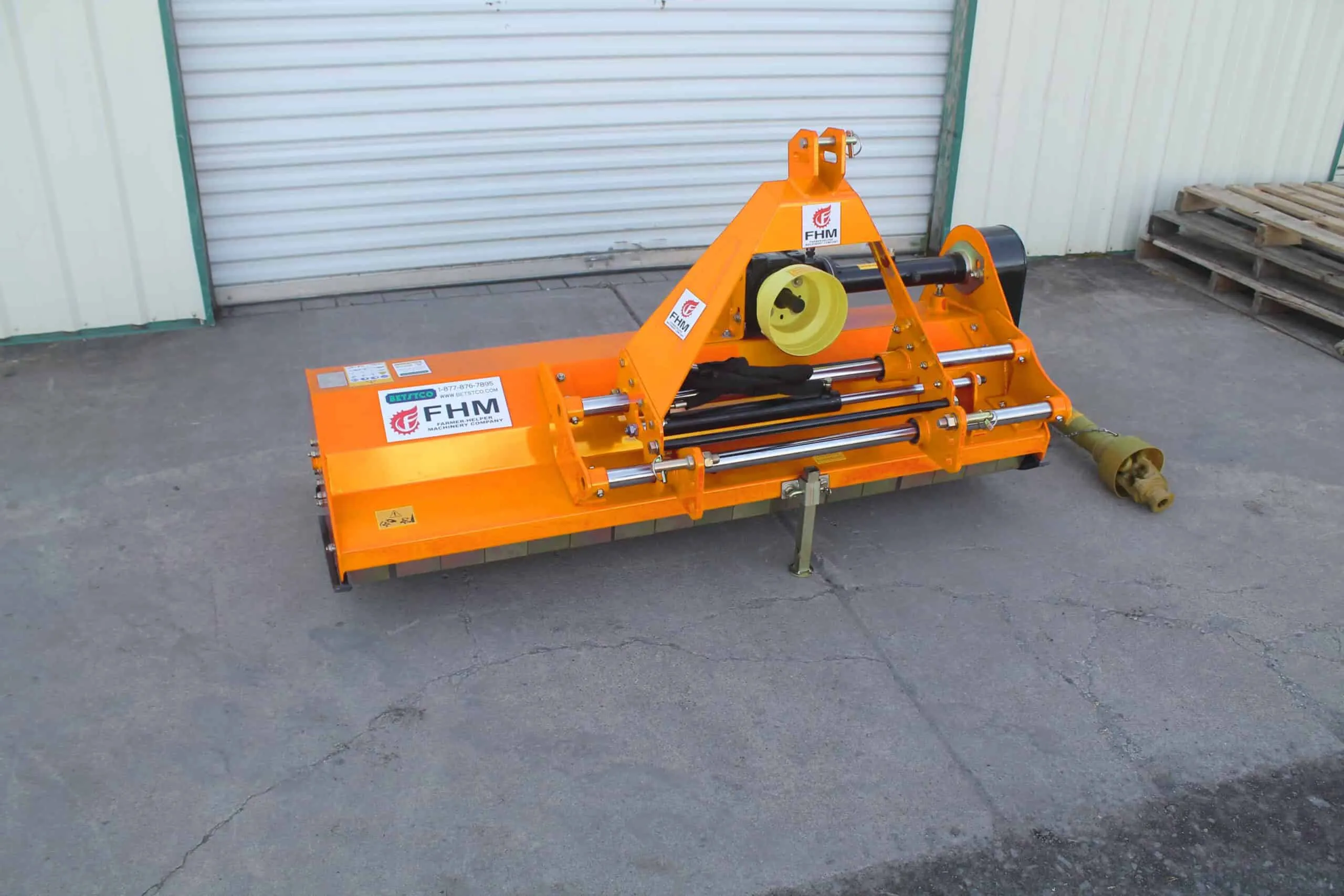

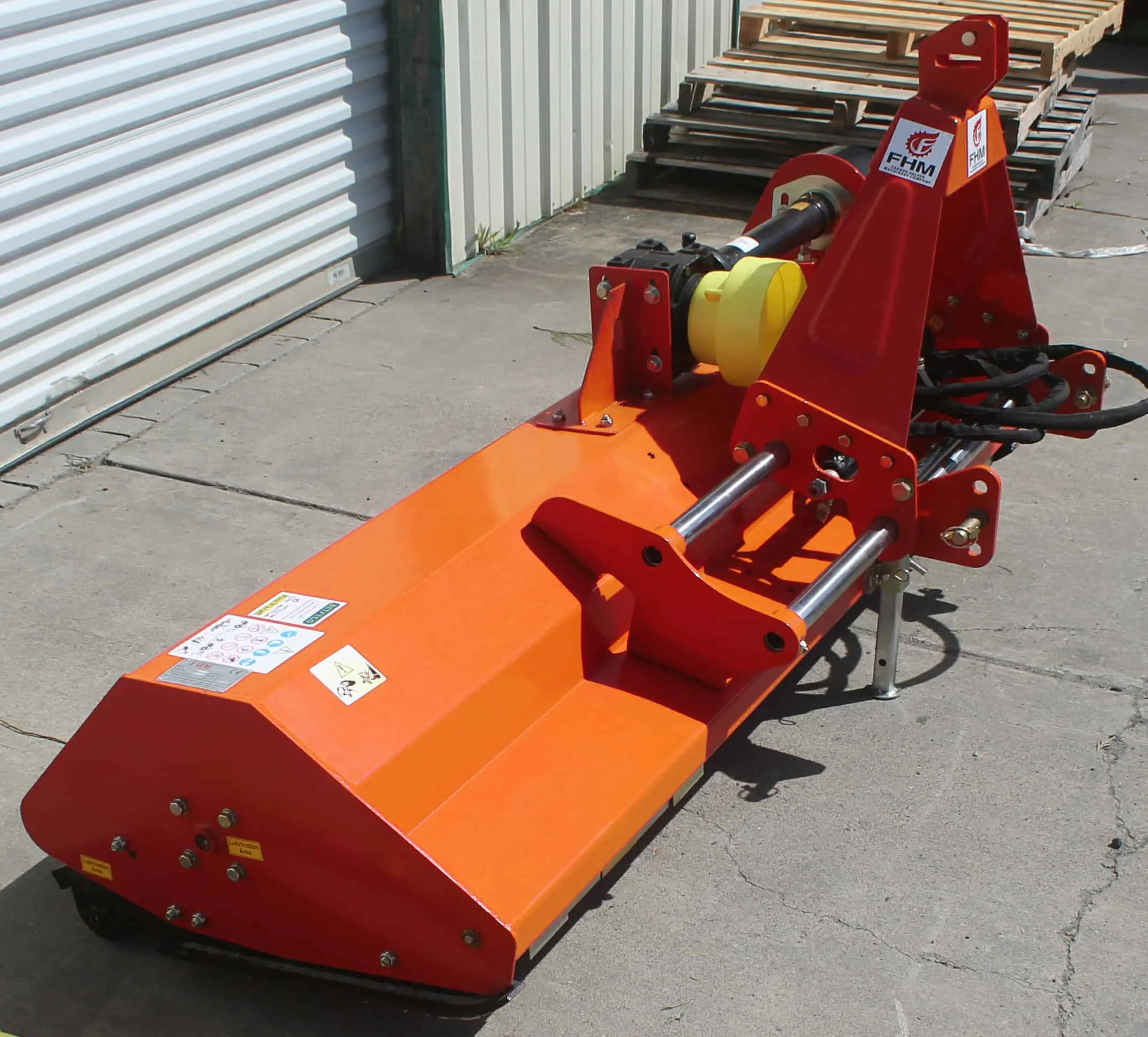

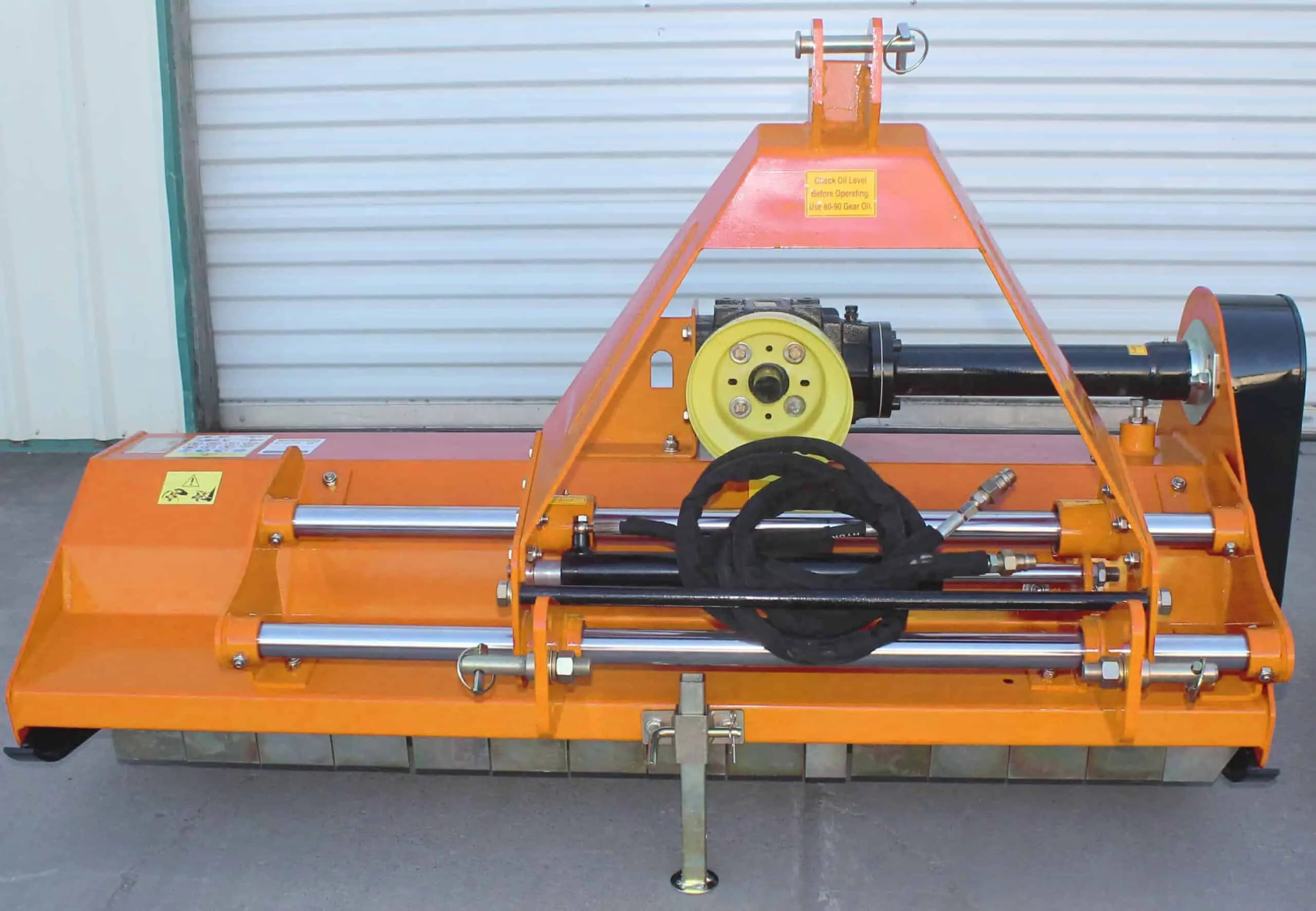

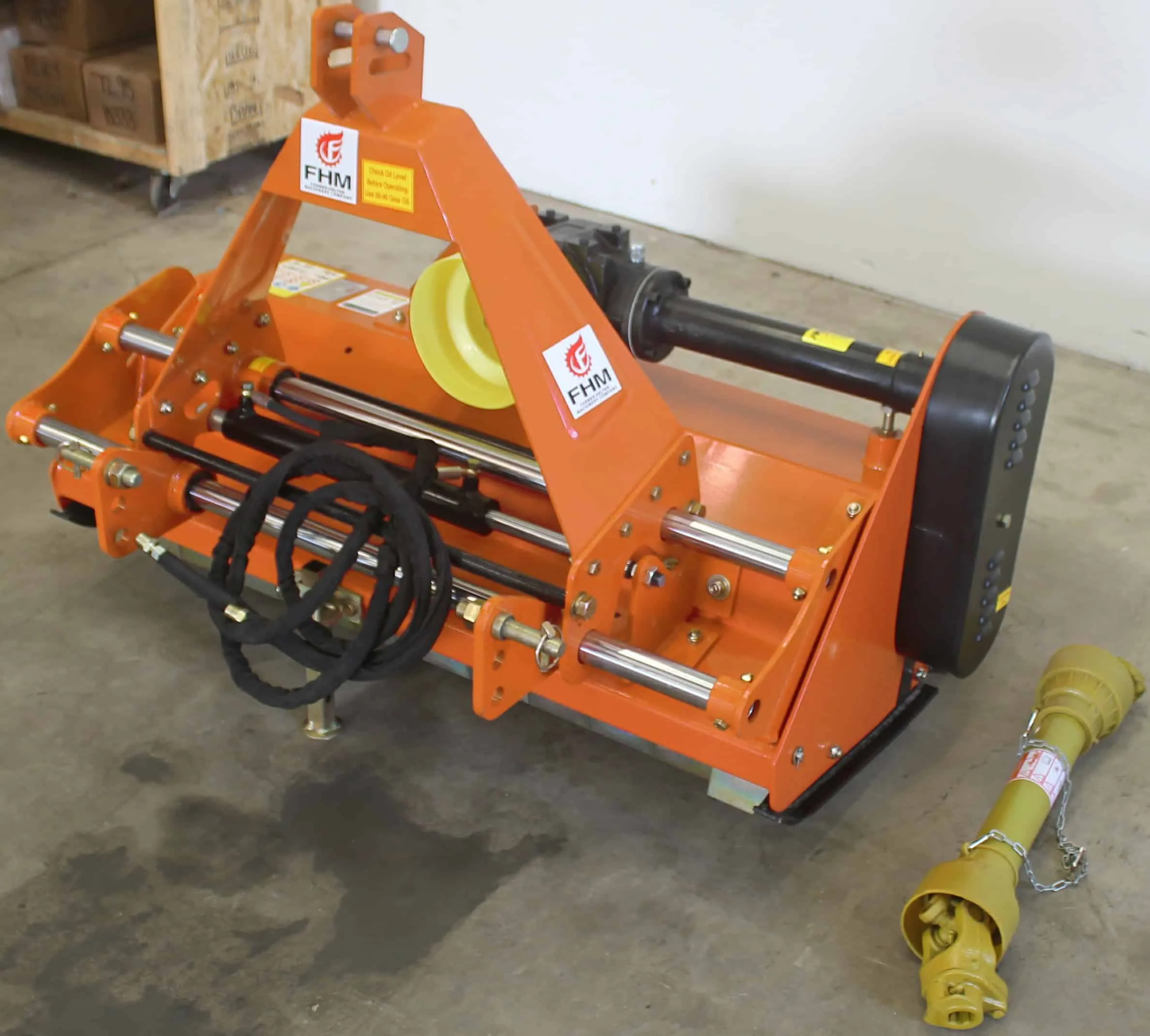

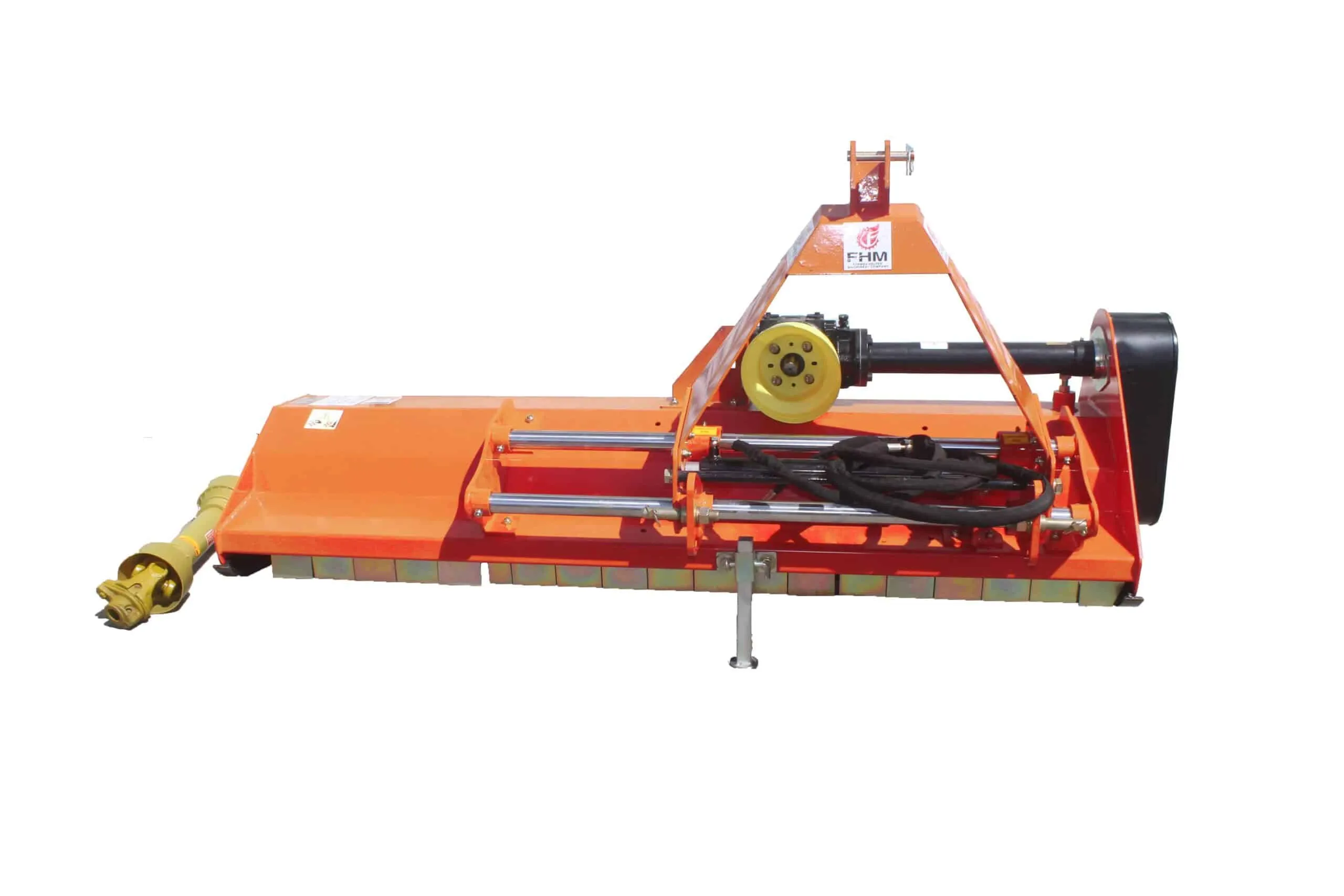

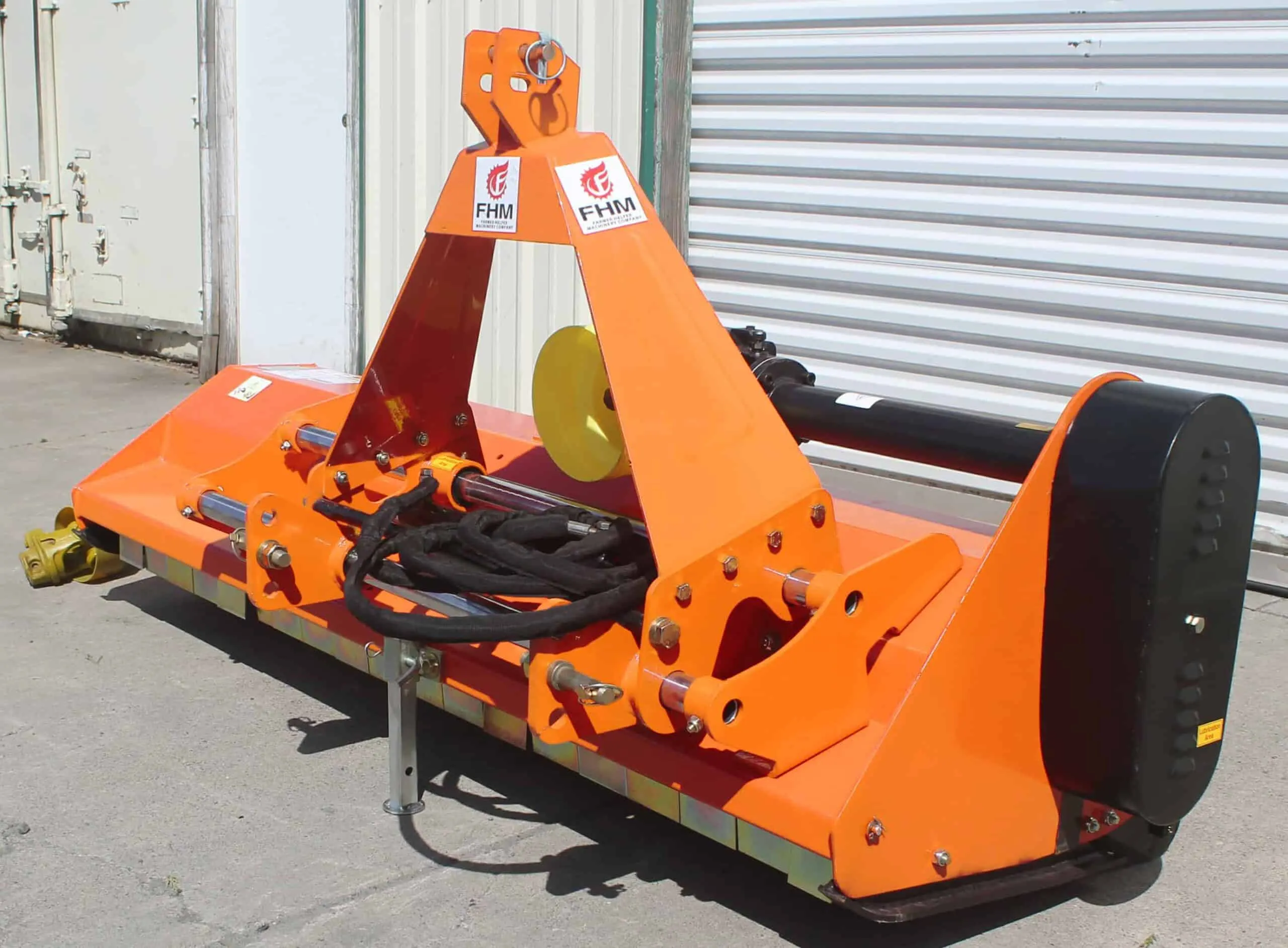

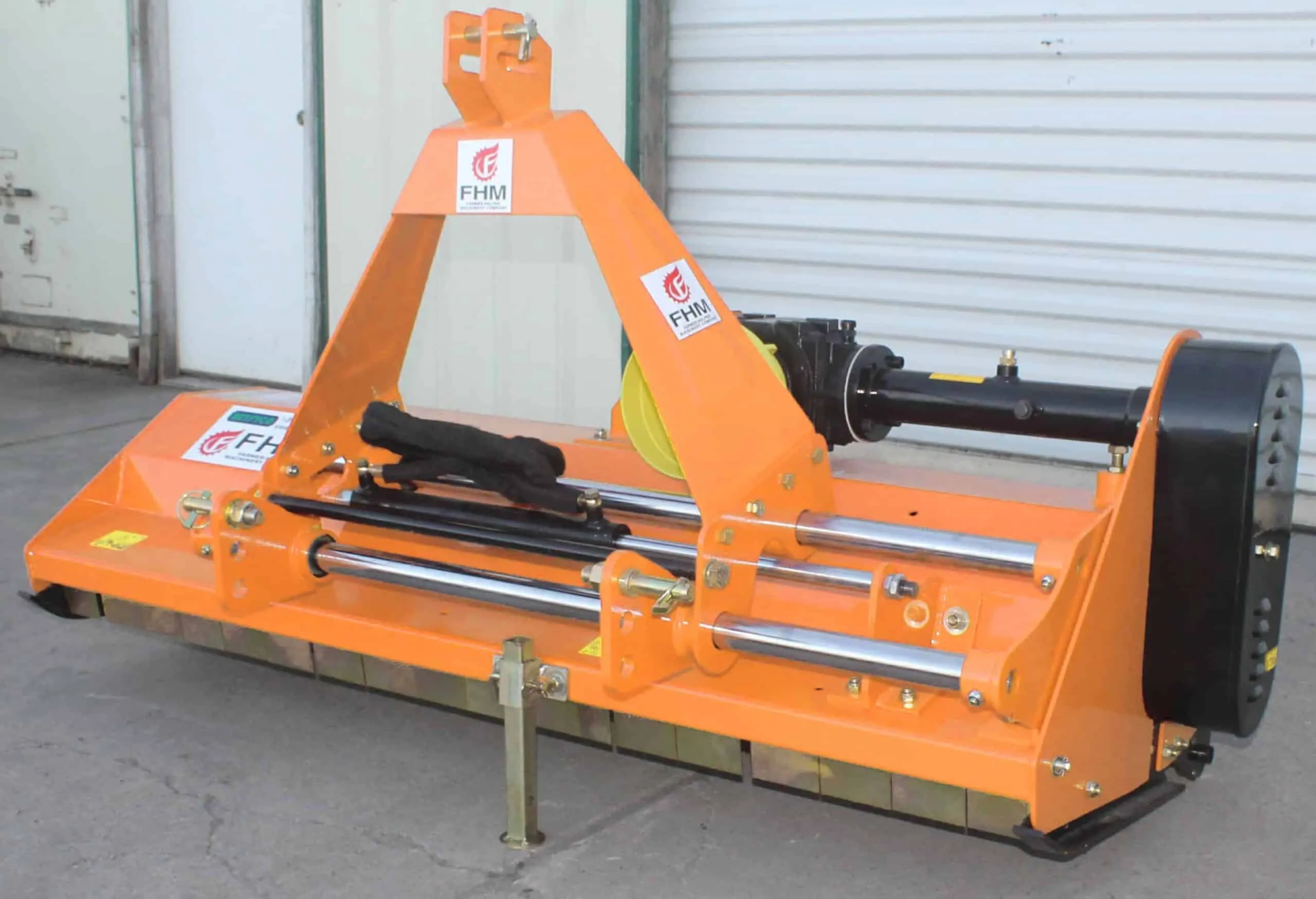

- Optional Hydraulic Offset Kit: Offers flexibility in mowing different areas.
- Blade Rotor Speed: 2300 RPM for efficient cutting.
Ideal Applications
- Orchards, Nurseries, Vineyards, Greenhouses, and Gardens: Fast blade tip speed and interchangeable blades make it perfect for groundskeeping.
- Dense Areas and Brush: Hammer blades allow cutting and mulching of wooded material up to 3 inches in diameter.
- High Grass, Weeds, and Small Saplings: Flail mowers don’t throw grass; they cut finely and leave the cuttings on the ground, minimizing debris throw risk.
Detailed Specifications
Model Specifications

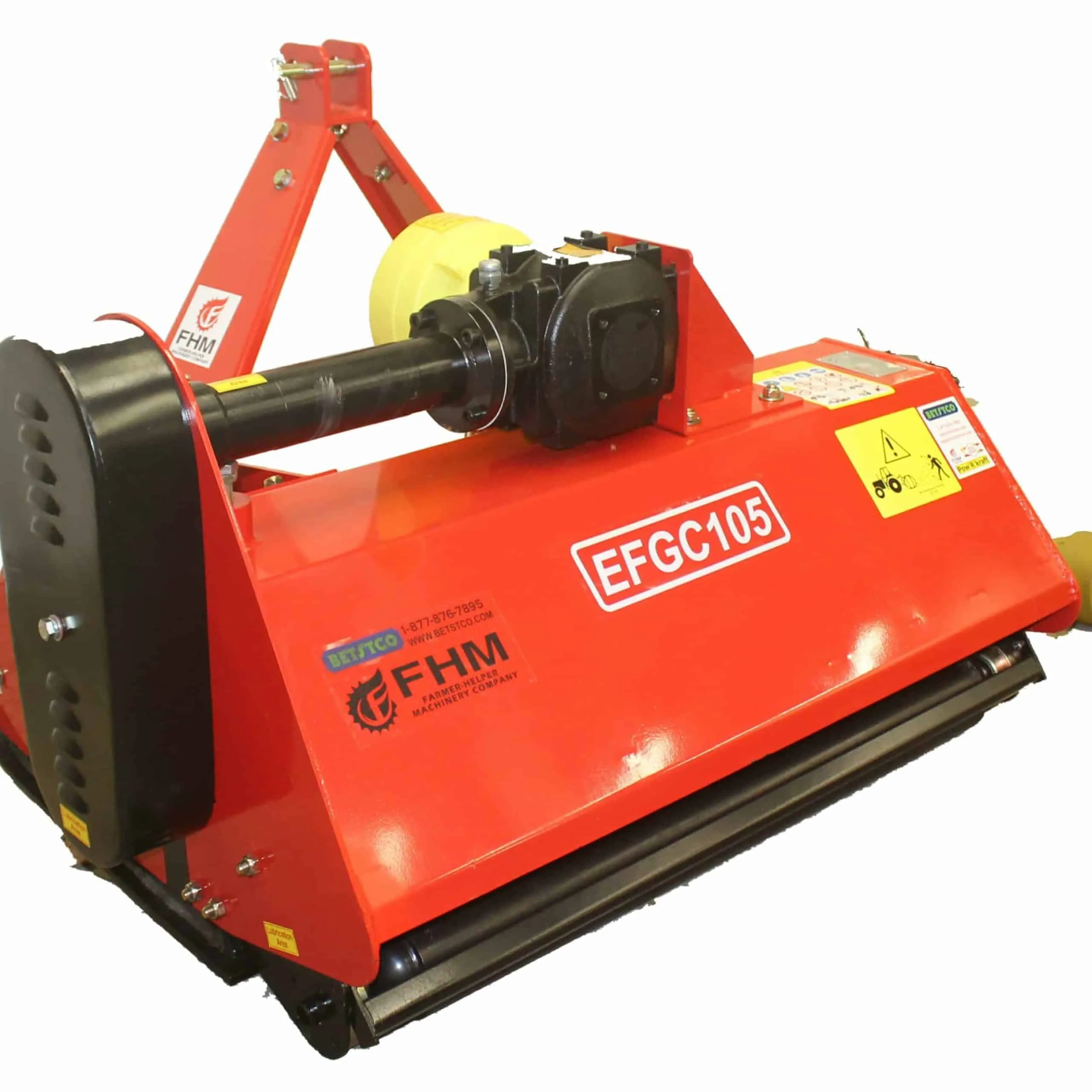

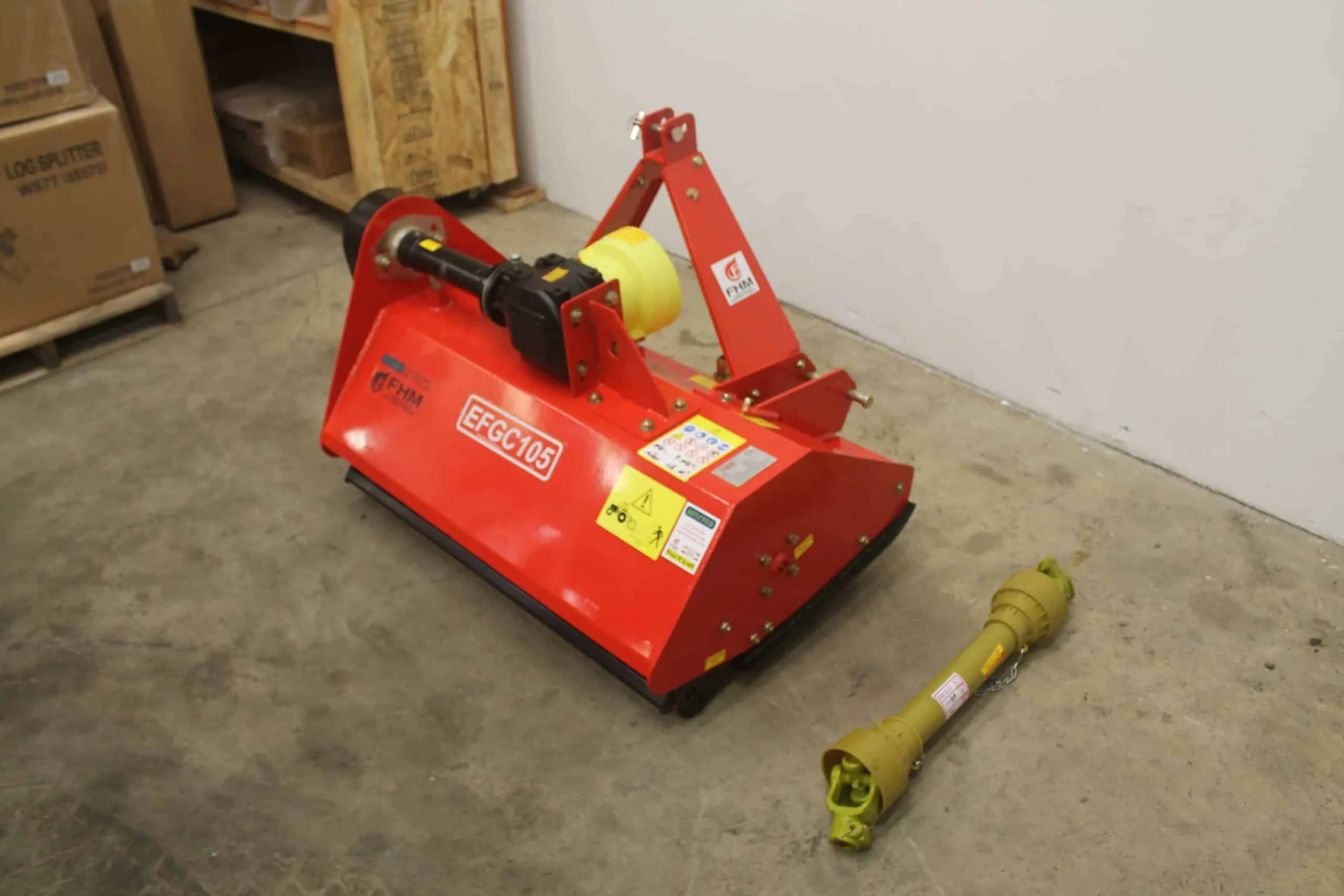

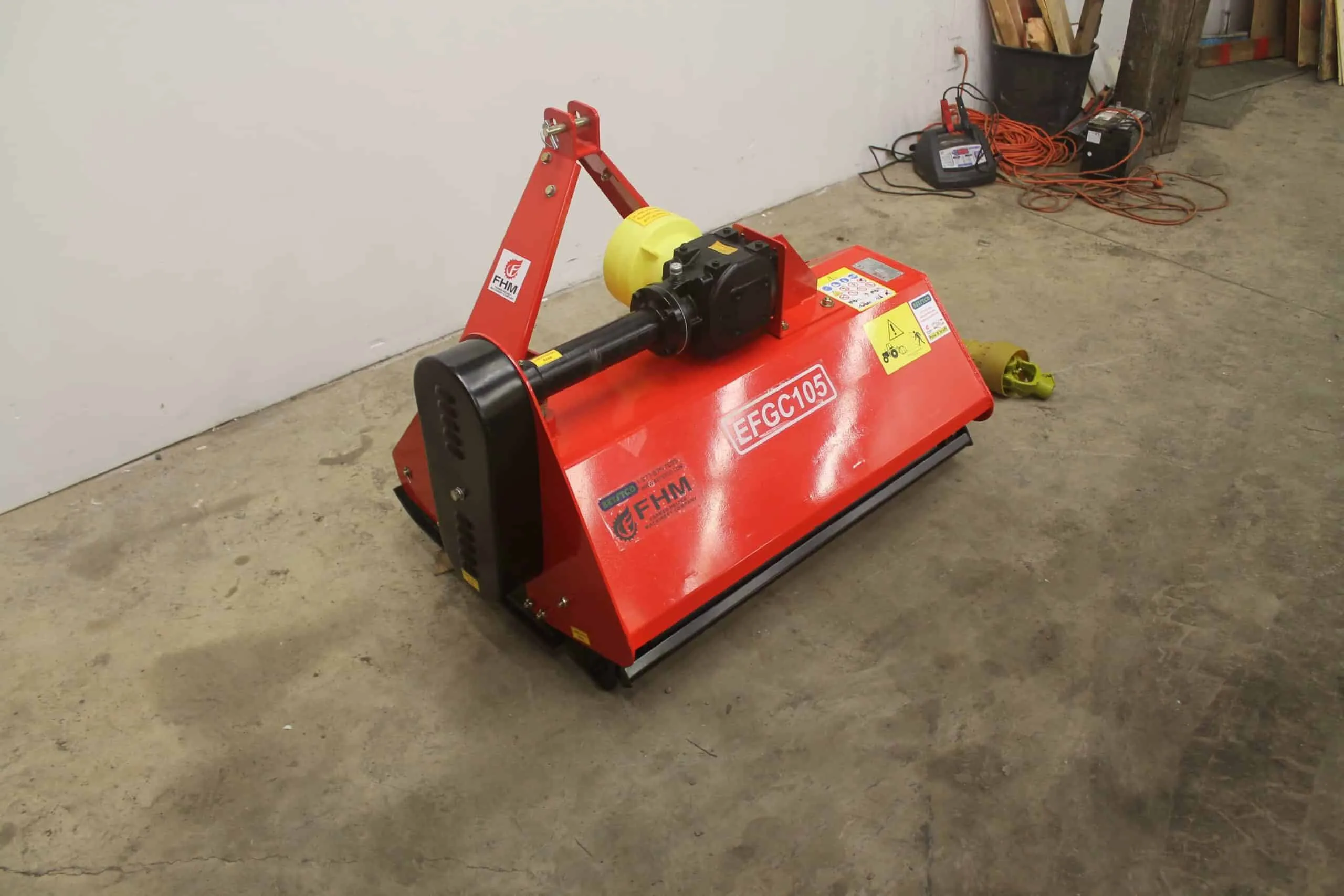

| Feature | FH-EFGC105 |
|---|---|
| Working Width | 41" |
| Overall Width | 47" |
| Min. HP Requirement | 20 HP |
| Gear Box Rating | 65 HP |
| Hammer Blades | 16 |
| Weight | 540 lbs |
| Offset Right of Center | 19" or 23.25" |
| Number of Belts | 2 |
| Rotor Diameter | 4" |
| 3pt Connection Width | Series 4 Quick Connect, 6-Spline |
| Crated Weight | 570 lbs |

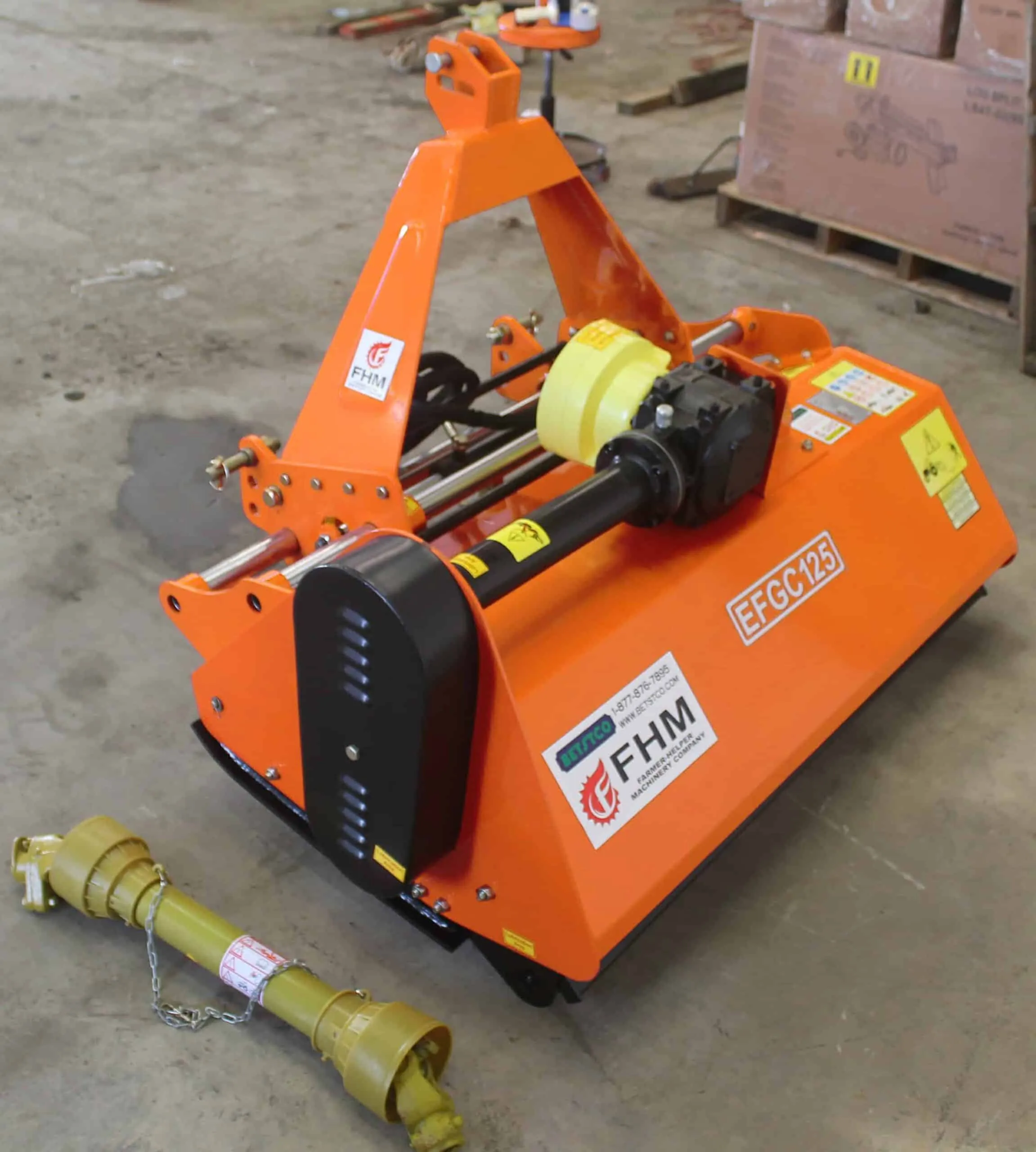

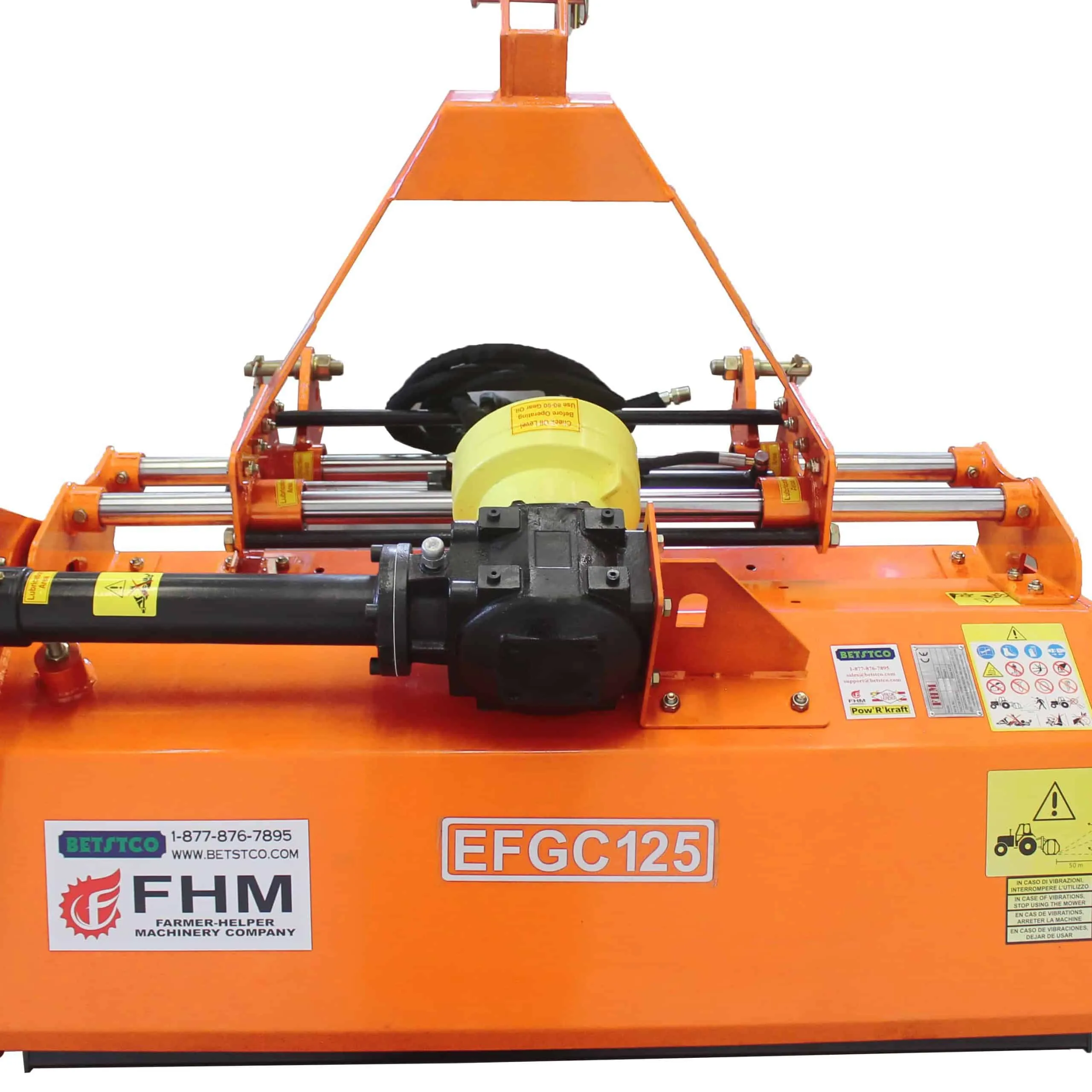

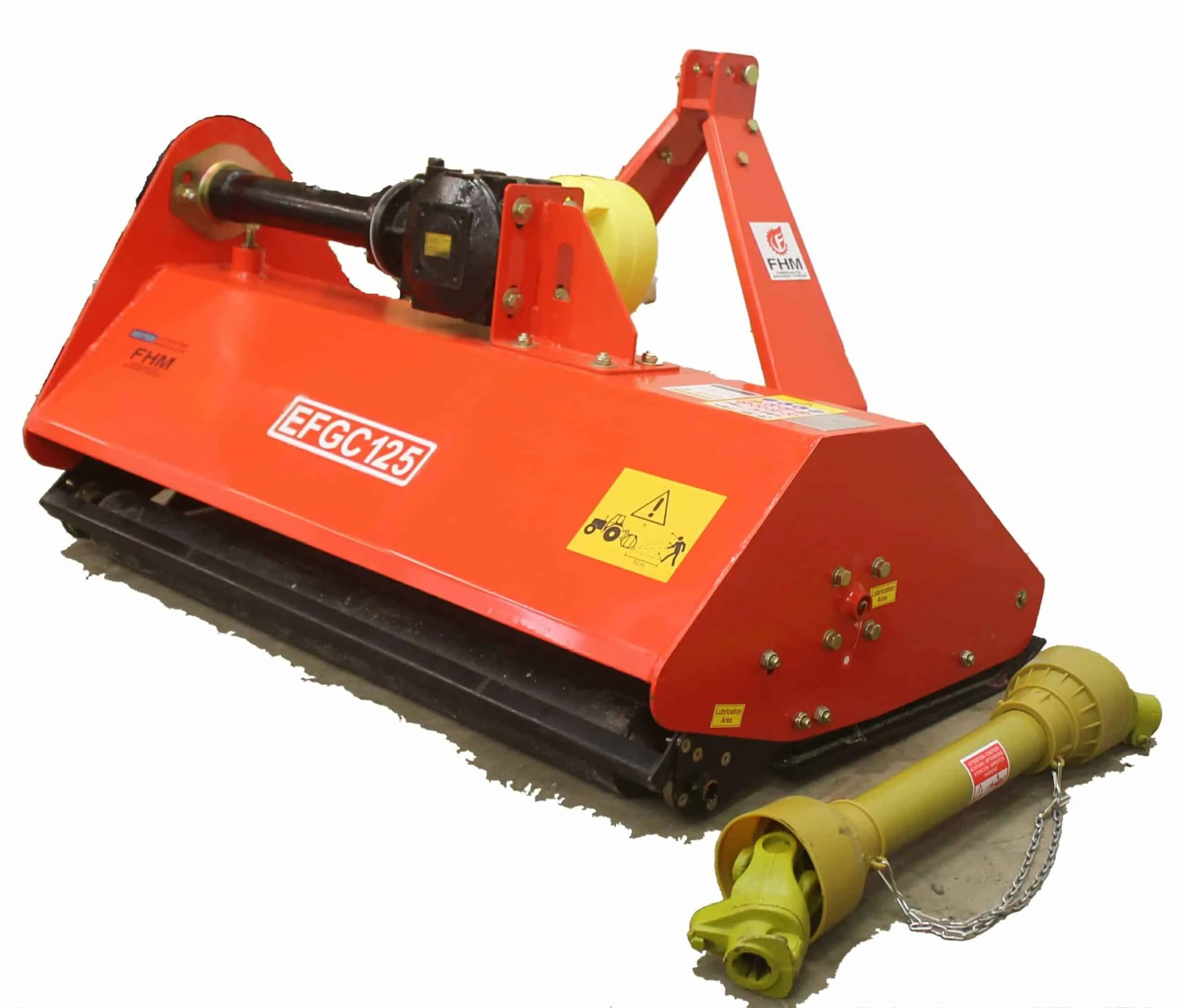

| Feature | FH-EFGC125 |
|---|---|
| Working Width | 48" |
| Overall Width | 54" |
| Min. HP Requirement | 22 HP |
| Gear Box Rating | 65 HP |
| Hammer Blades | 20 |
| Weight | 600 lbs |
| Offset Right of Center | 23.50" or 27.75" |
| Number of Belts | 2 |
| Rotor Diameter | 4" |
| 3pt Connection Width | Series 4 Quick Connect, 6-Spline |
| Crated Weight | 635 lbs |

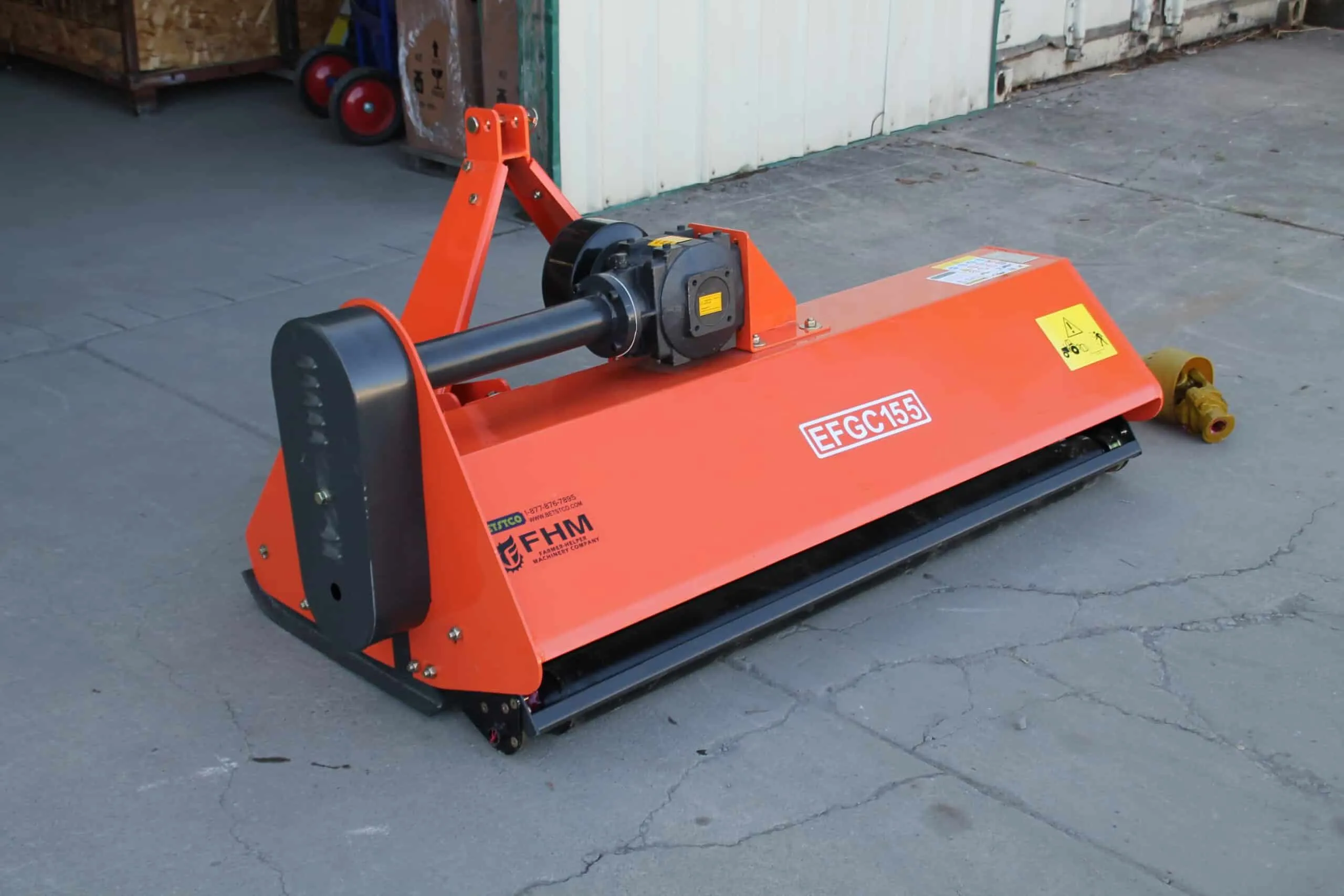

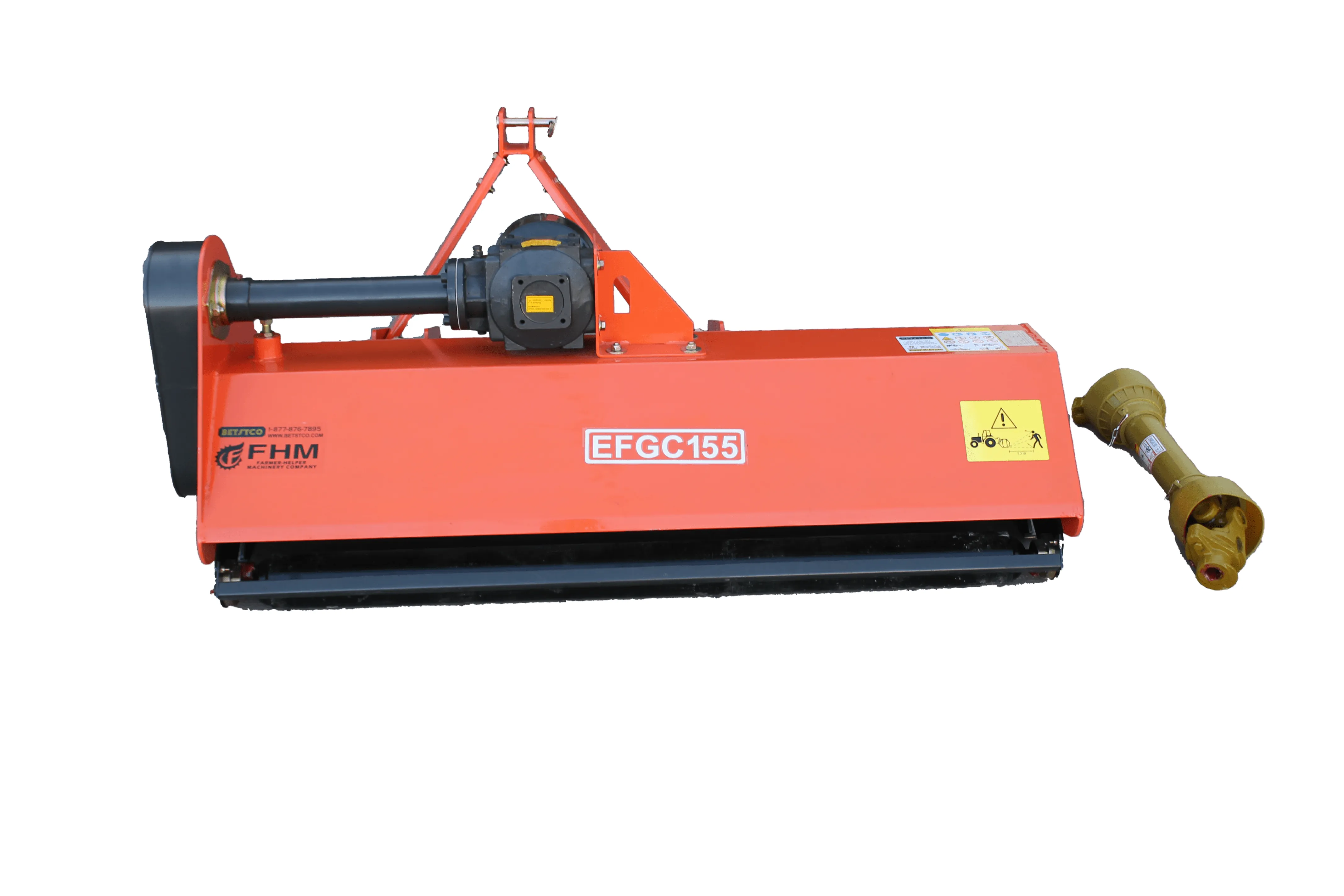

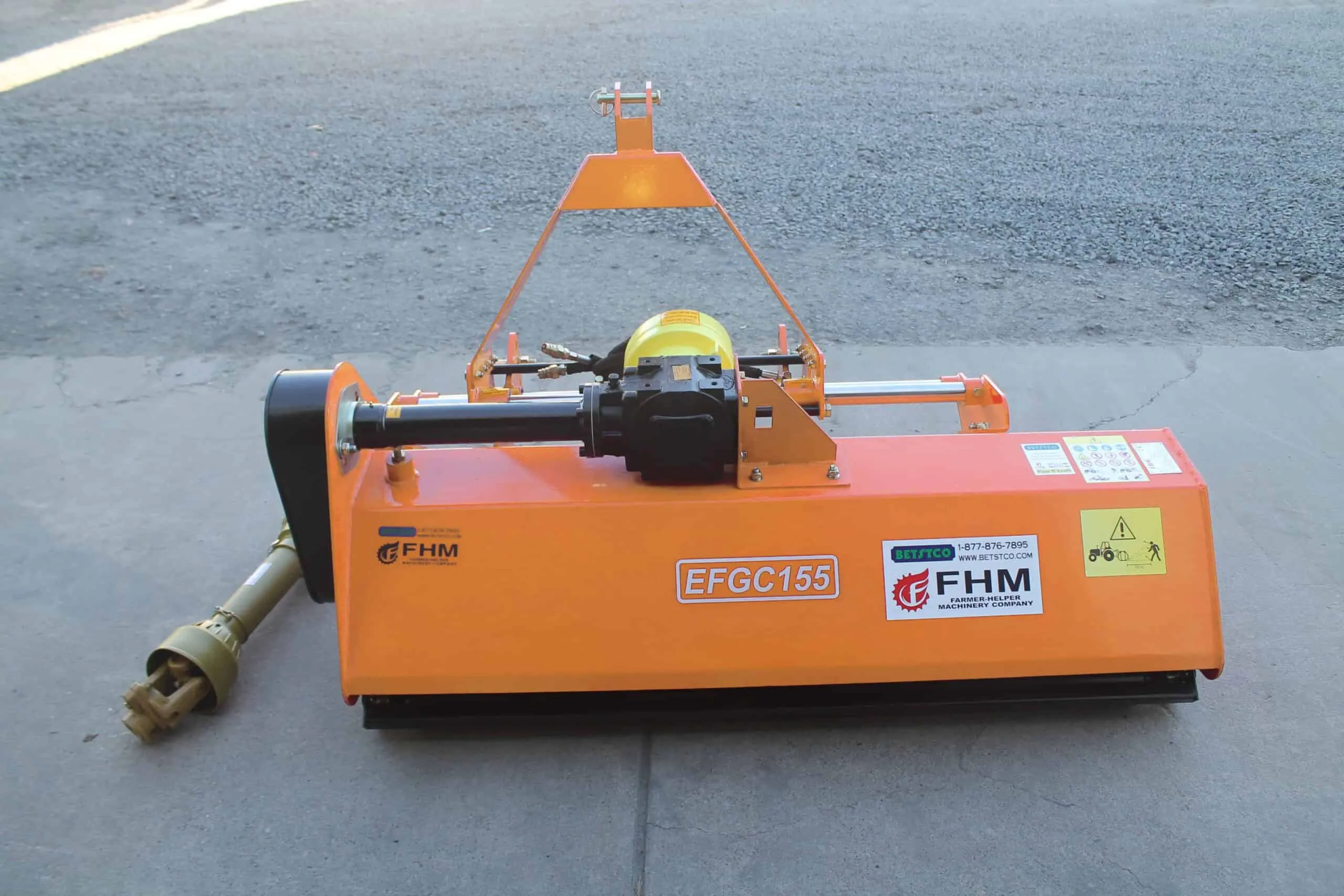

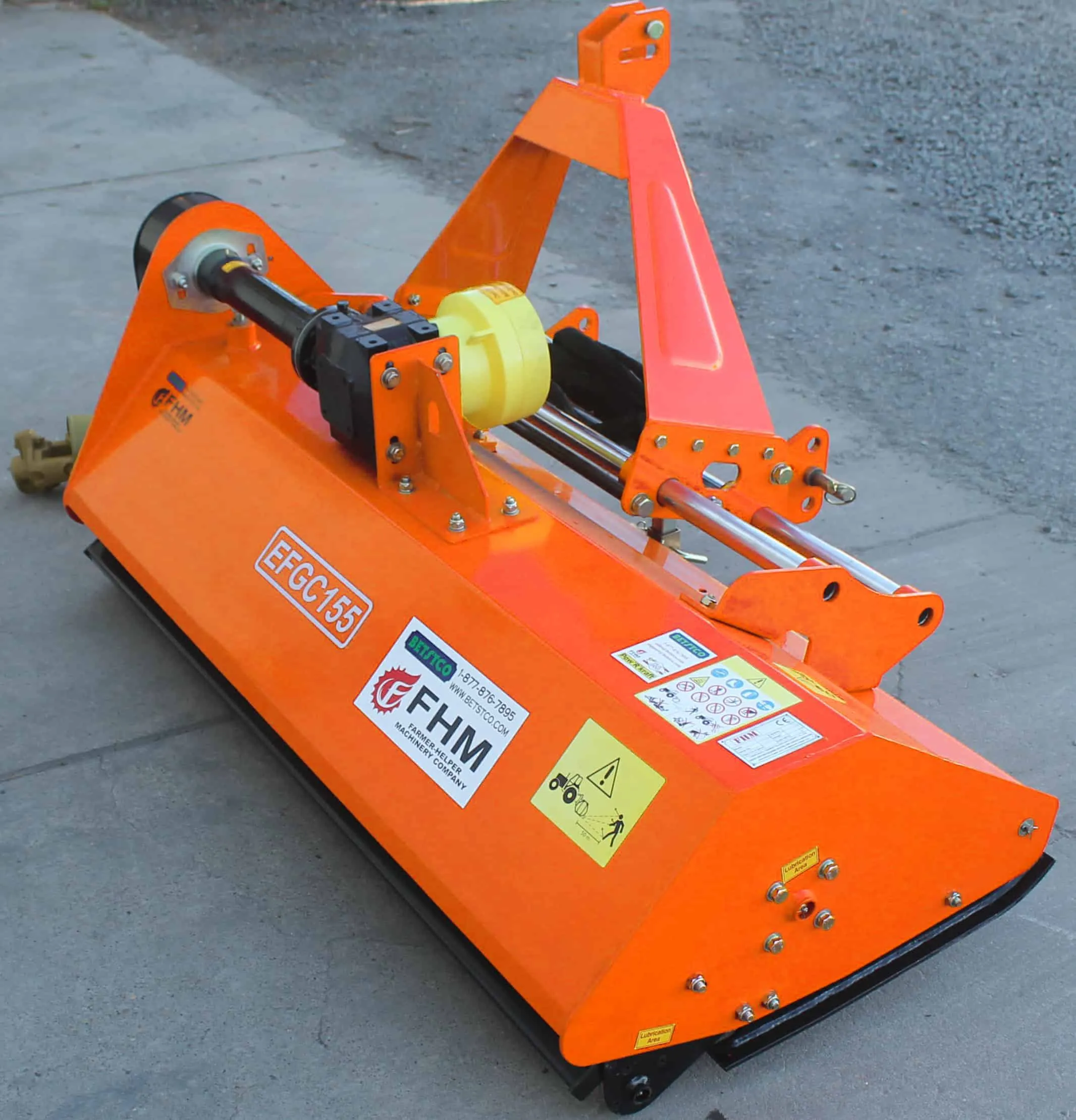

| Feature | FH-EFGC155 |
|---|---|
| Working Width | 60" |
| Overall Width | 67" |
| Min. HP Requirement | 25 HP |
| Gear Box Rating | 65 HP |
| Hammer Blades | 24 |
| Weight | 720 lbs |
| Offset Right of Center | 35.25" or 39.50" |
| Number of Belts | 3 |
| Rotor Diameter | 4" |
| 3pt Connection Width | Series 5 Quick Connect, 6-Spline |
| Crated Weight | 755 lbs |

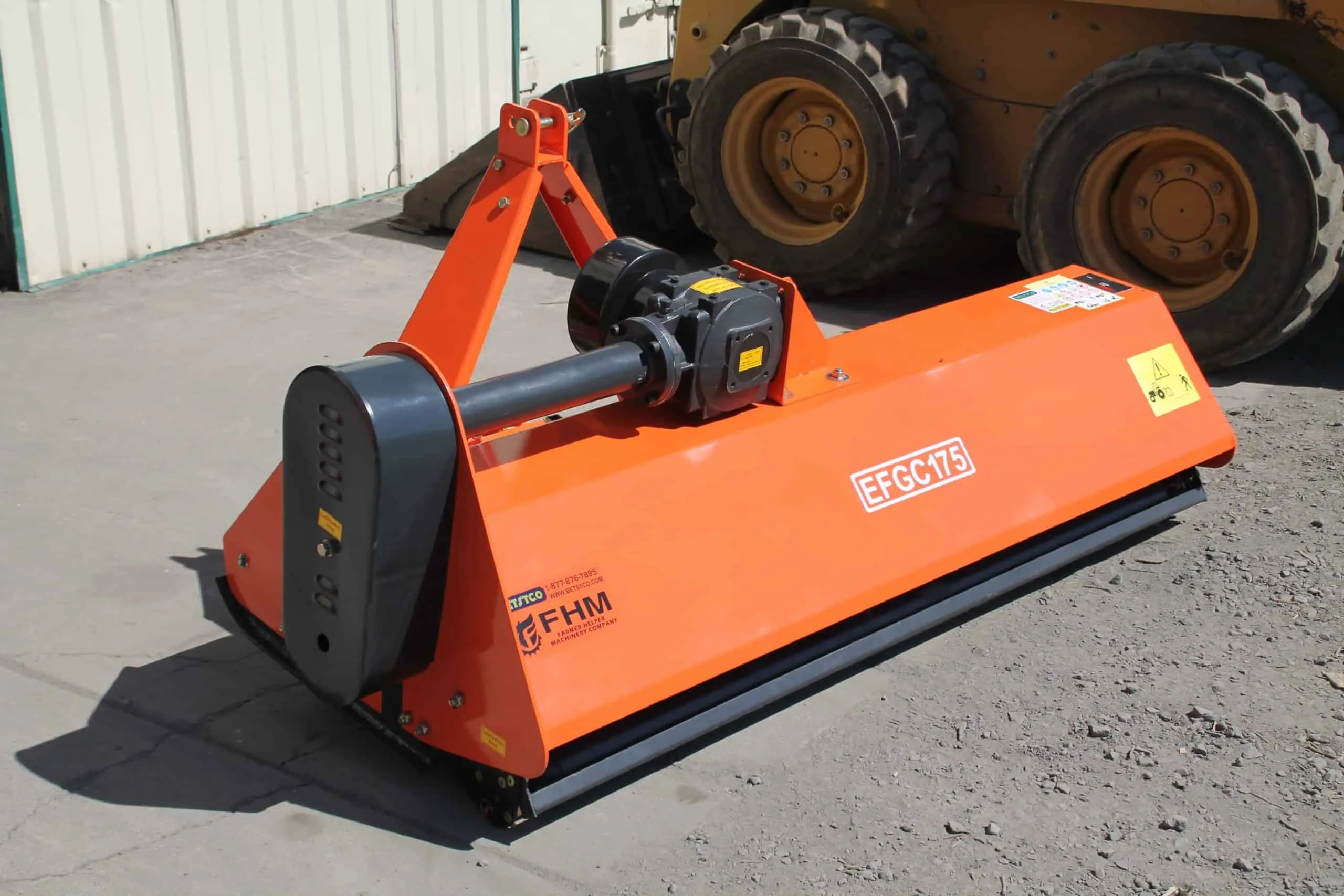

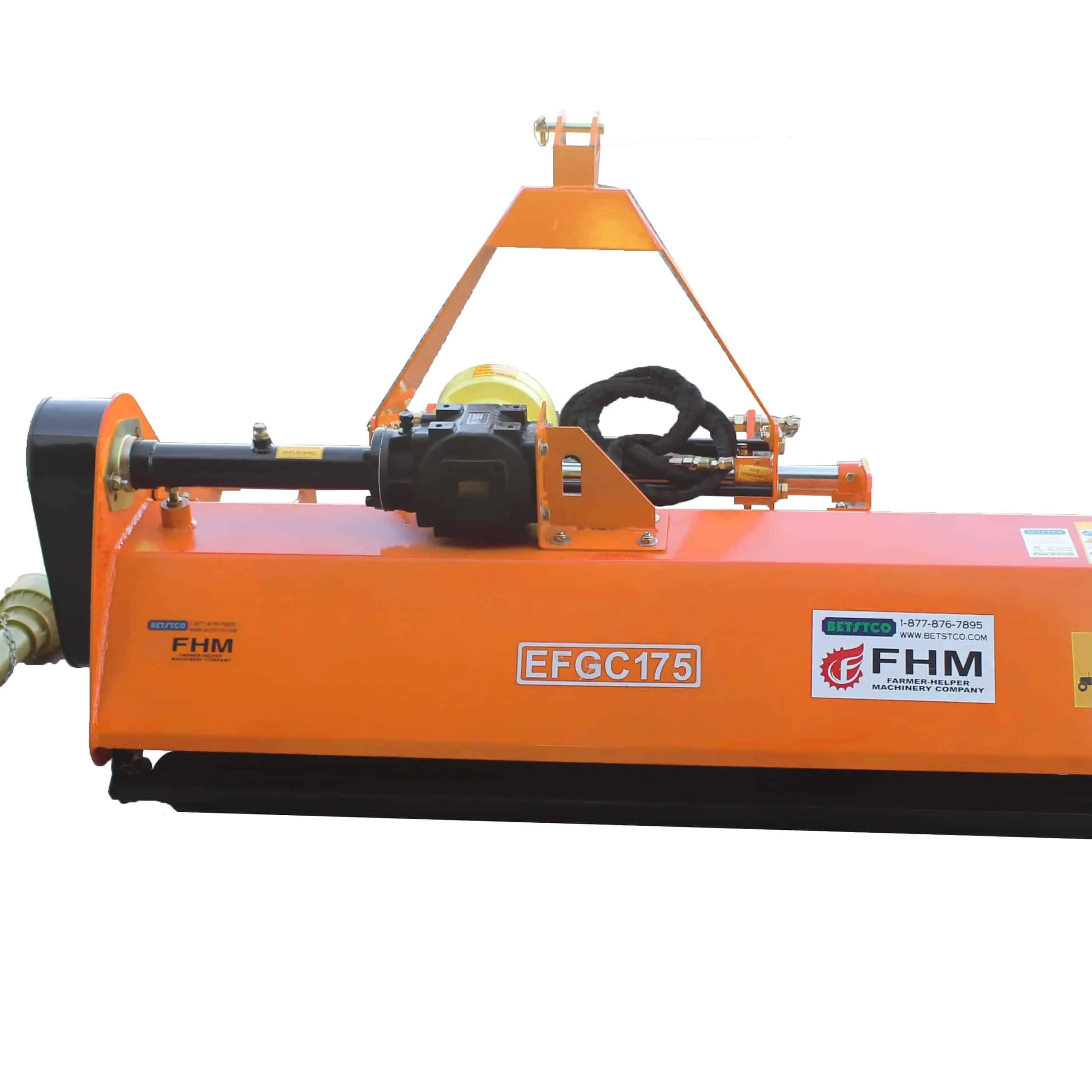

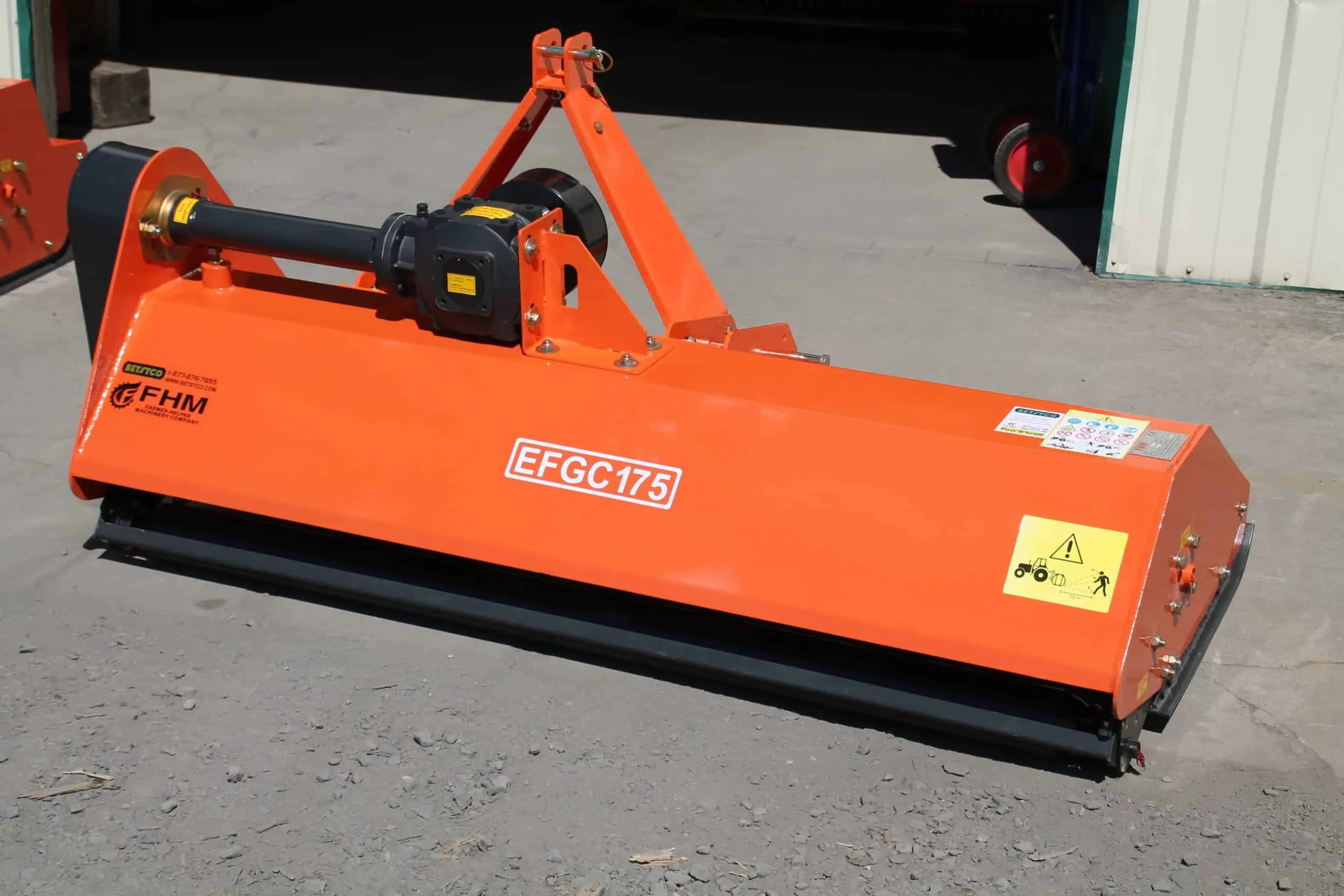

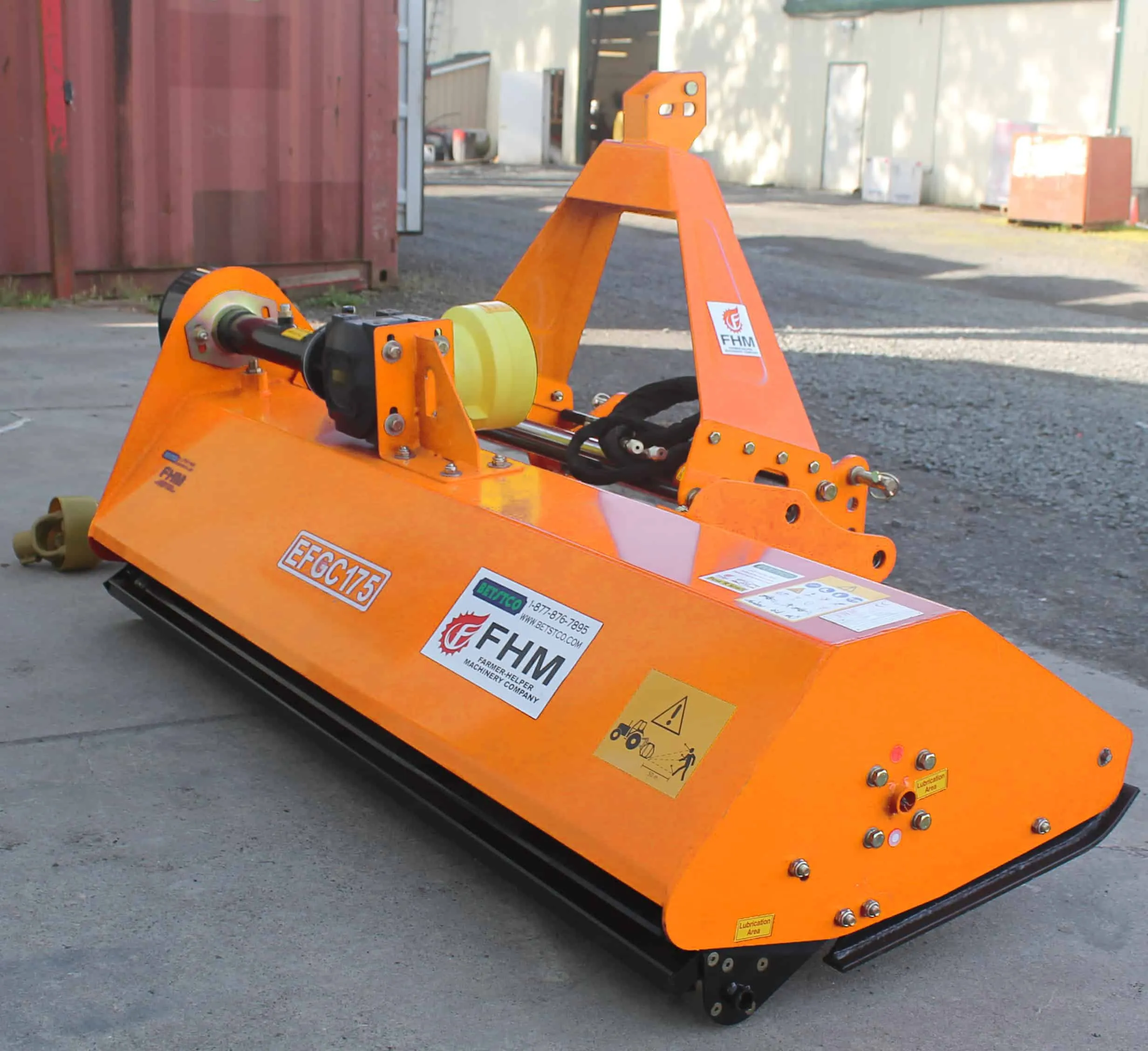

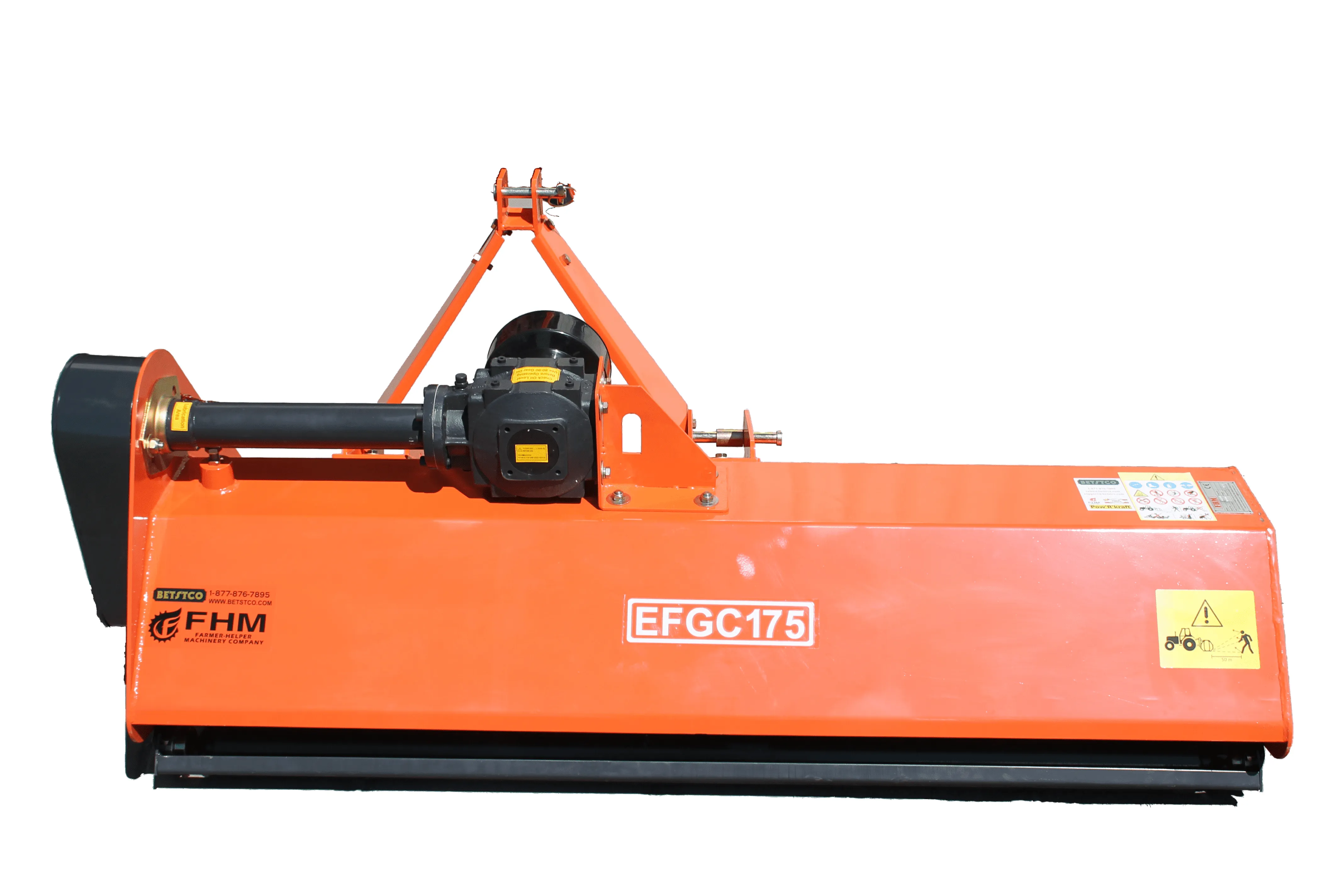

| Feature | FH-EFGC175 |
|---|---|
| Working Width | 68" |
| Overall Width | 75" |
| Min. HP Requirement | 30 HP |
| Gear Box Rating | 65 HP |
| Hammer Blades | 28 |
| Weight | 740 lbs |
| Offset Right of Center | 43.25" or 47.50" |
| Number of Belts | 4 |
| Rotor Diameter | 4" |
| 3pt Connection Width | Series 5 Quick Connect, 6-Spline |
| Crated Weight | 790 lbs |

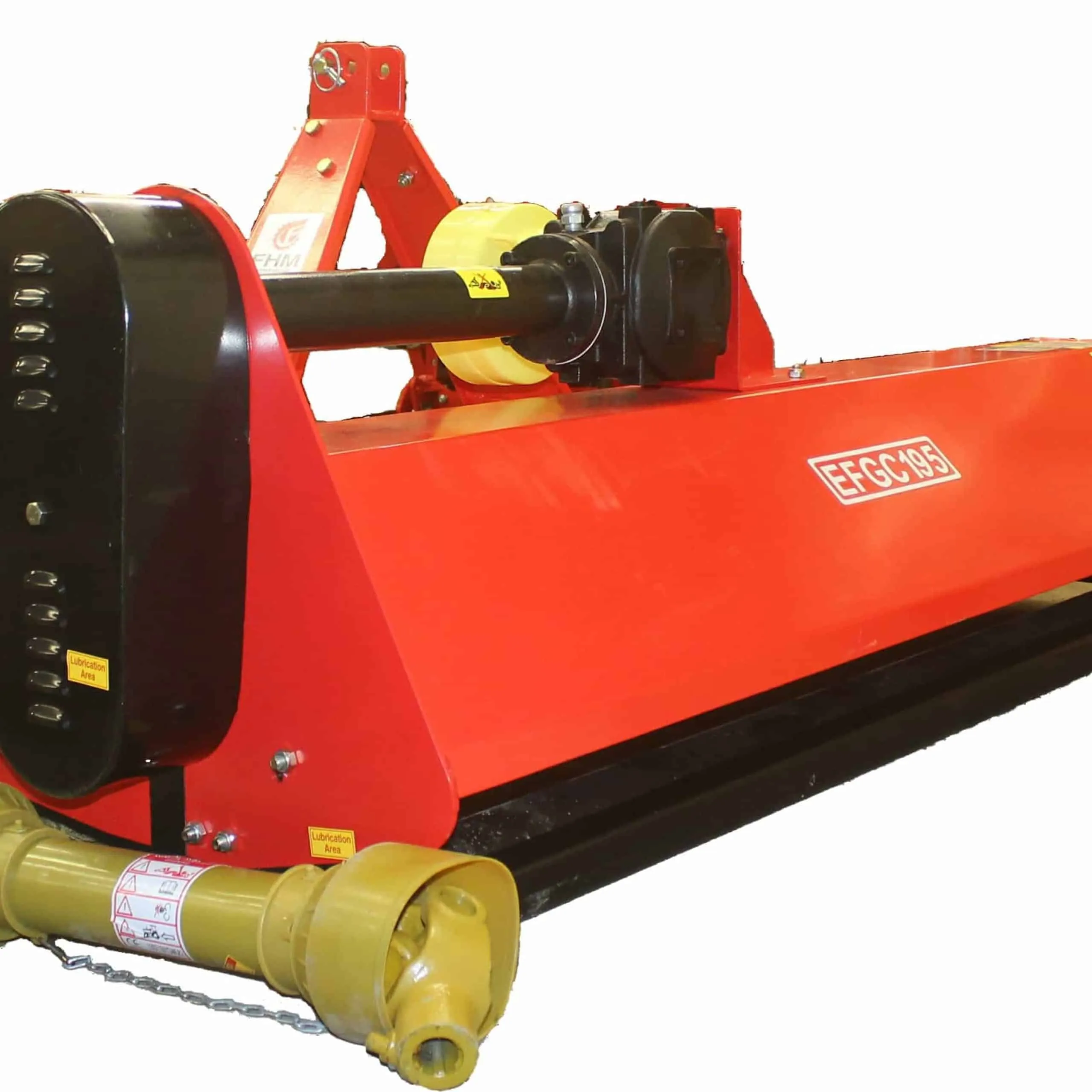

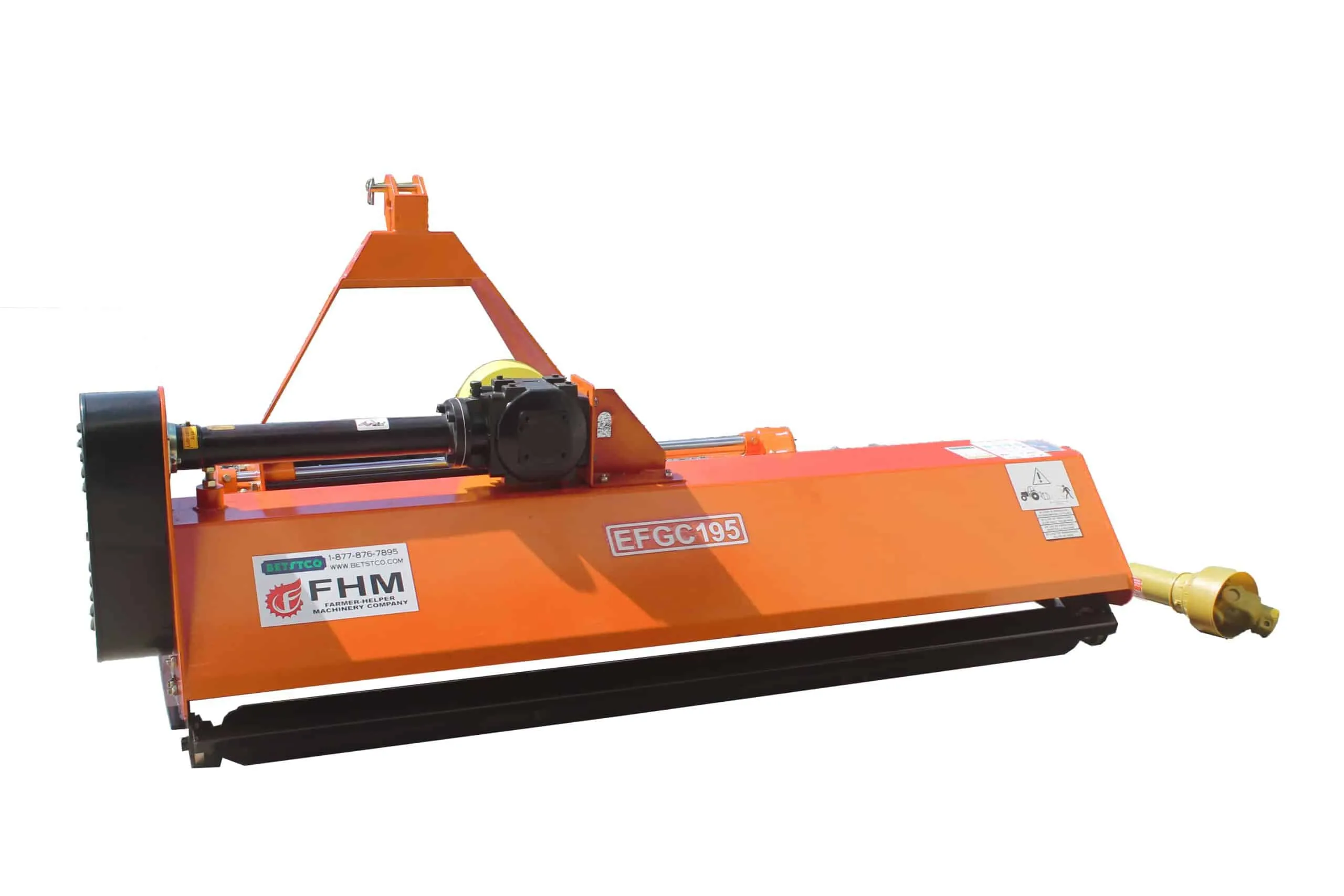

| Feature | FH-EFGC195 |
|---|---|
| Working Width | 77" |
| Overall Width | 83" |
| Min. HP Requirement | 35 HP |
| Gear Box Rating | 65 HP |
| Hammer Blades | 32 |
| Weight | 790 lbs |
| Offset Right of Center | 47.25" or 51.50" |
| Number of Belts | 4 |
| Rotor Diameter | 4" |
| 3pt Connection Width | Series 5 Quick Connect, 6-Spline |
| Crated Weight | 830 lbs |
General Specifications
| Specification | Details |
|---|---|
| Overall Width | 47" to 83" depending on the size of the unit. |
| Cutting Width | 41" to 77" depending on the size of the unit. |
| HP Requirements at PTO | 20 – 65 PTO horsepower depending on the size. |
| Weight | 540 lbs to 790 lbs depending on the size. |
| Cutting Height | 0" – 6" Adjustable |
| Housing Material Thickness | 4mm |
| Side Plate Thickness | 1/4" |
| Blade Type | Standard Hammer Blade (Cast Steel) |
| Rotor Rotation | Reverse |
| Rotor Tube Diameter | 4" |
| Balanced Rotor Tube | Yes |
| Rotor Swing Diameter | 14 1/2" |
| Hitch Type | Category 1 Standard 3-point |
| Offset From Center Mount | 19" to 47 1/4" depending on size |
| Drive Belts | 2 – 4 belts depending on size |
| Gearbox Rating | Up to 65 HP |
| Driveline / PTO Shaft | Shear Bolt PTO Shaft, Standard 1-3/8” 6-Spline |
| Finish | Baked-on powder coat |
In Package
- Flail Mower Unit: Includes the complete mower assembly with hammer blades.
- Standard 3-Pt Category I Hitch Mount: For easy attachment to compatible tractors.
- Shear Bolt PTO Shaft: Standard 1-3/8” 6-Spline PTO shaft.
- Operating Manual: Detailed instructions for assembly and operation.
- Warranty Documentation: Information on warranty coverage.
